AD22P
HIKMICRO AD22P Acoustic Detector photo 1
All Products
AD22P
AD Series

AD22P

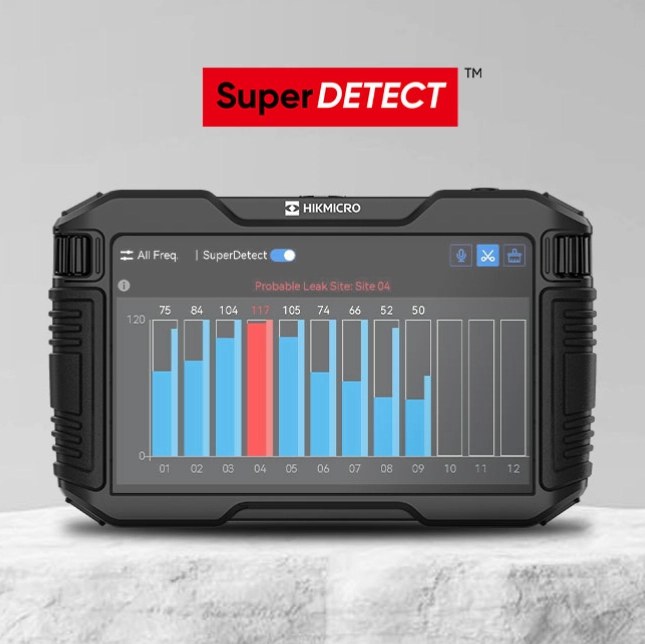

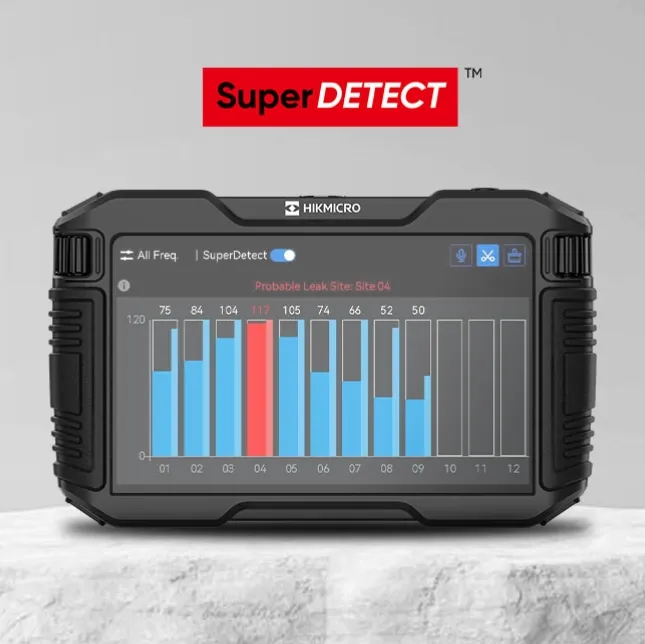

The HIKMICRO AD22P is a water leak detector for pressurised pipes indoors and outdoors. It suits plumbers, property maintenance teams and leak detection specialists in Malaysia working on homes and small commercial properties.

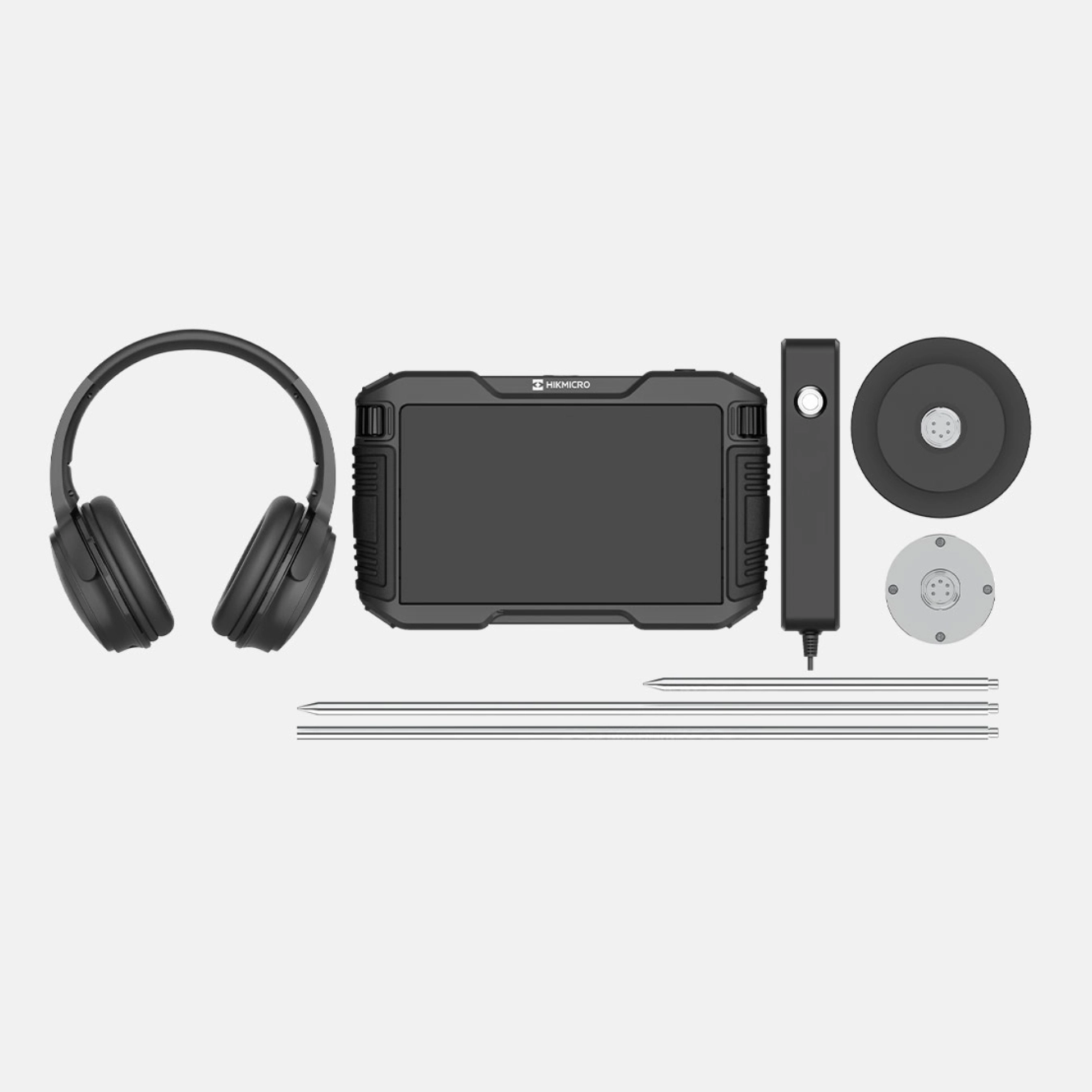

An indoor sensor finds leaks in pipes hidden in floors and walls, and a rugged outdoor sensor works on soil, concrete, asphalt and paving, which helps avoid unnecessary digging. It has a 7-inch touchscreen and about 11 hours of battery life.

Why buy from INFRAMATRIX? Genuine HIKMICRO acoustic products from INFRAMATRIX, an authorised HIKMICRO distributor in Malaysia, with a local service centre for after-sales support.

For indoor-only work, see the HIKMICRO AD21P. Pair it with the HIKMICRO B20S thermal camera to confirm leaks.

Key specifications

  • Display: 7" LCD Touchscreen
  • Storage: 4 GB Internal
  • Battery life: Approx. 11 hours
  • Operating temperature: -10°C to 50°C
  • Protection rating: Main Unit: IP40；
    Indoor Sensor: IP40；
    Outdoor sensor: IP66；
  • Frequency range: 200 ~ 16000 Hz
  • Band-pass filters: Indoor Mode 1: 5000 to 16000 Hz
    Indoor Mode 2: 8000 to 16000 Hz
    Outdoor Mode: 200 to 2000 Hz
    Custom Mode: Adjustable from 200 to 16000 Hz
  • Amplification: Manual
  • SuperDetect: Yes(only for indoor mode)
Request InfoView Brochure
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Details
Usage
Care

The FLIR Si2-Pro™ is an industrial-grade acoustic imaging camera designed to revolutionise maintenance and inspection workflows. Equipped with 124 MEMS microphones and AI-powered severity assessment, it excels in detecting partial discharges, pressurised air/gas leaks, and mechanical faults.

With built-in frequency tuning, precise leak quantification, and enterprise-level fleet management, this IP54-rated camera is an indispensable tool for industries focused on safety, efficiency, and cost savings.

The FLIR Si2-Pro™ is perfect for various industrial applications, including:

• Leak Detection: Identify and measure compressed air, gas, and other leaks from up to 200m away, minimizing energy losses and operational costs.

• Mechanical Fault Analysis: Detect bearing defects, misalignment, and other mechanical issues early to prevent equipment failures and reduce downtime.

• Partial Discharge Detection: Pinpoint electrical discharges in high-voltage systems, assess their severity, and classify PD types for targeted maintenance.

To maintain the FLIR Si2-Pro™ in peak condition:

• Regularly clean the camera’s sensors and microphones using appropriate tools to ensure precise measurements.

• Store the device in its provided hard transport case to protect it from dust, moisture, and physical damage.

• Update the camera firmware via OTA (Over-The-Air) updates to access the latest features and fixes.

• Schedule routine calibration and servicing to ensure long-term accuracy and performance.

Acoustic Imaging Cameras
Acoustic Imaging Cameras
Specifications
The technical specifications of the FLIR Si2-Pro™ are as follows.
IR Resolution
240 × 180 pixels (43,200 pixels)
Thermal Sensitivity/NETD
<0.06°C (0.11°F) / <50 mK at 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Field of view (FOV)
33° × 25°
Digital Camera
5 MP
Image Modes
Thermal MSX, Thermal, Picture-in-Picture, Digital camera
Display
3.5 inches
640 × 480 color LCD
Storage Media
Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)

Download Brochure

Find out more about the specifications of this product

View Now
