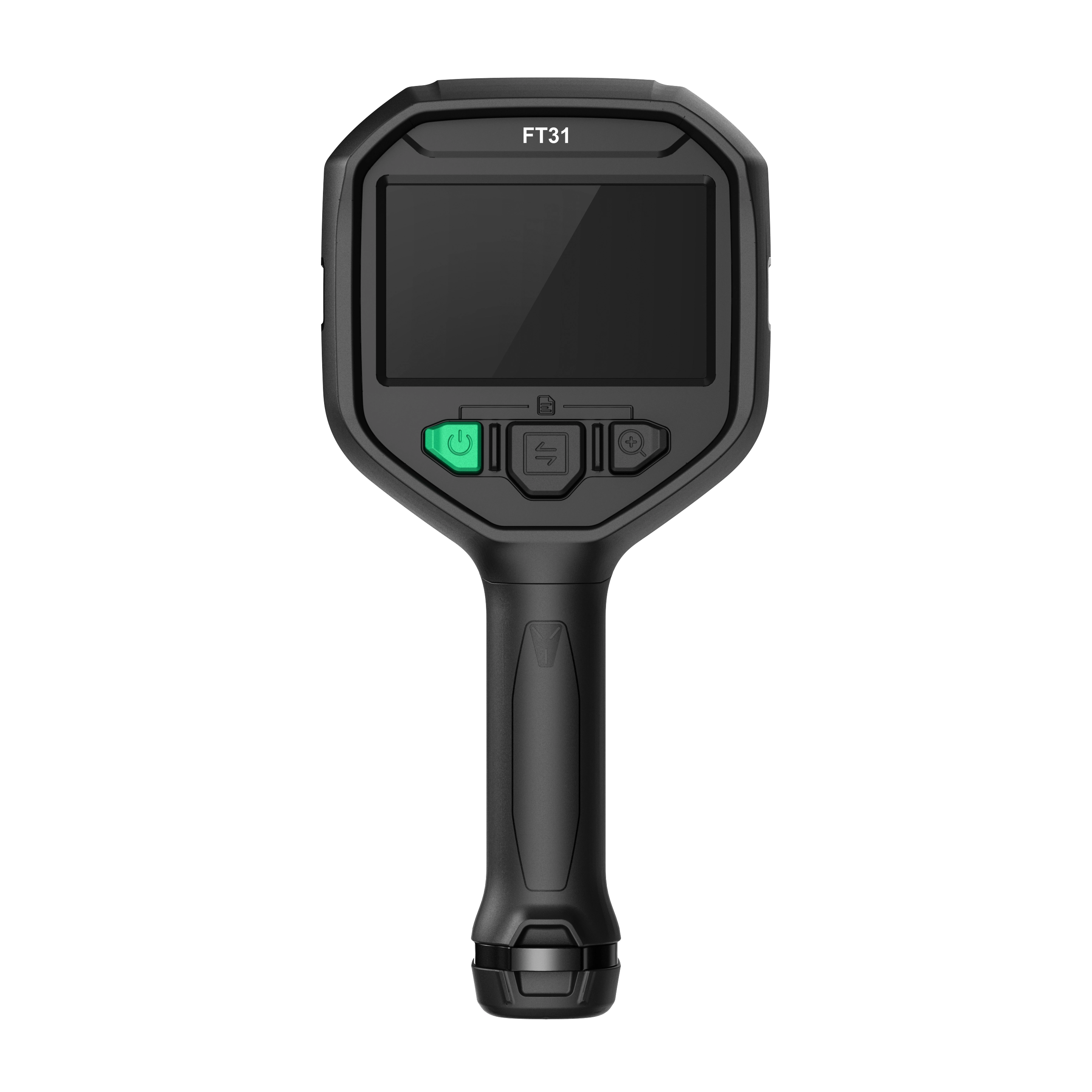

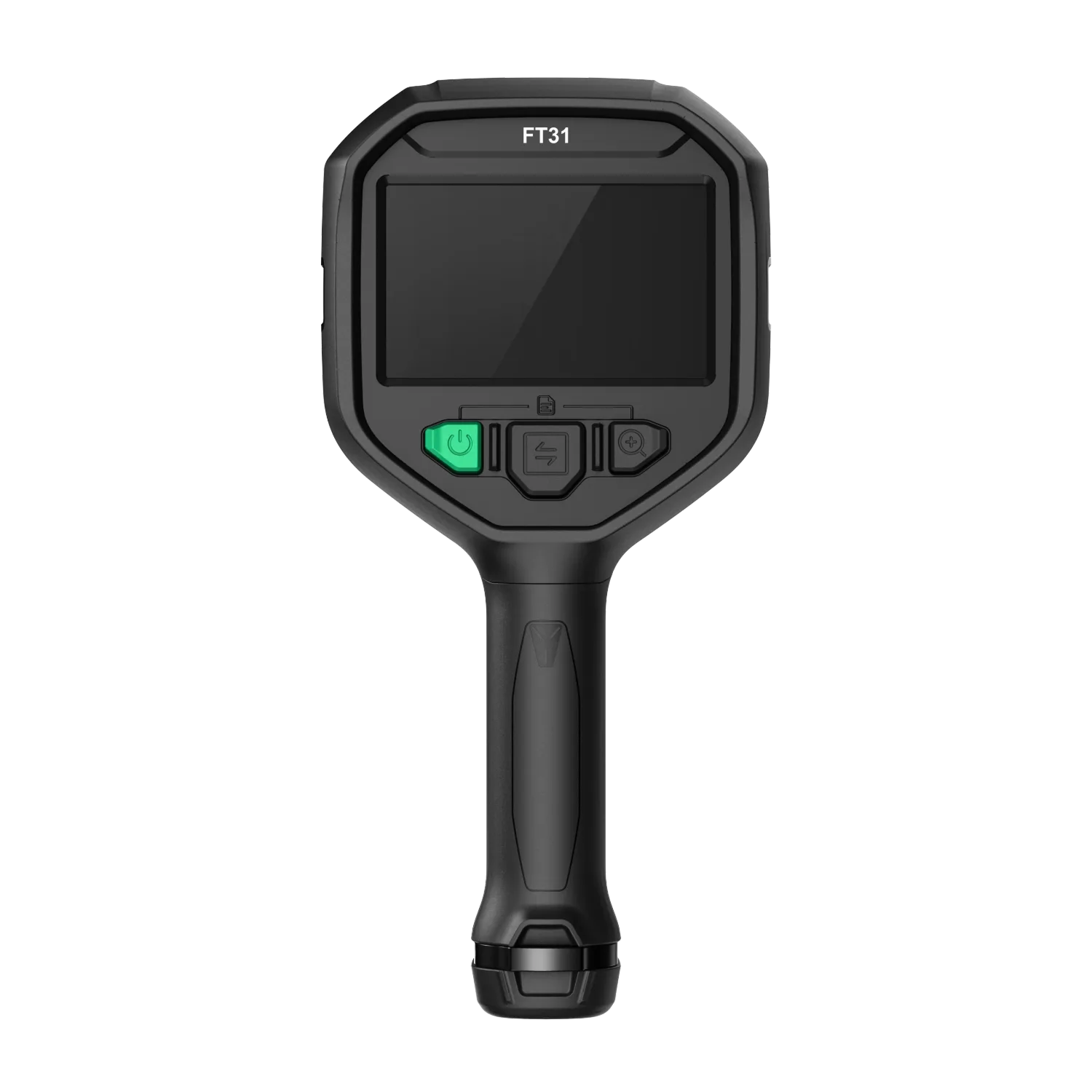

HIKMICRO FT31 Firefighting Camera photo 1

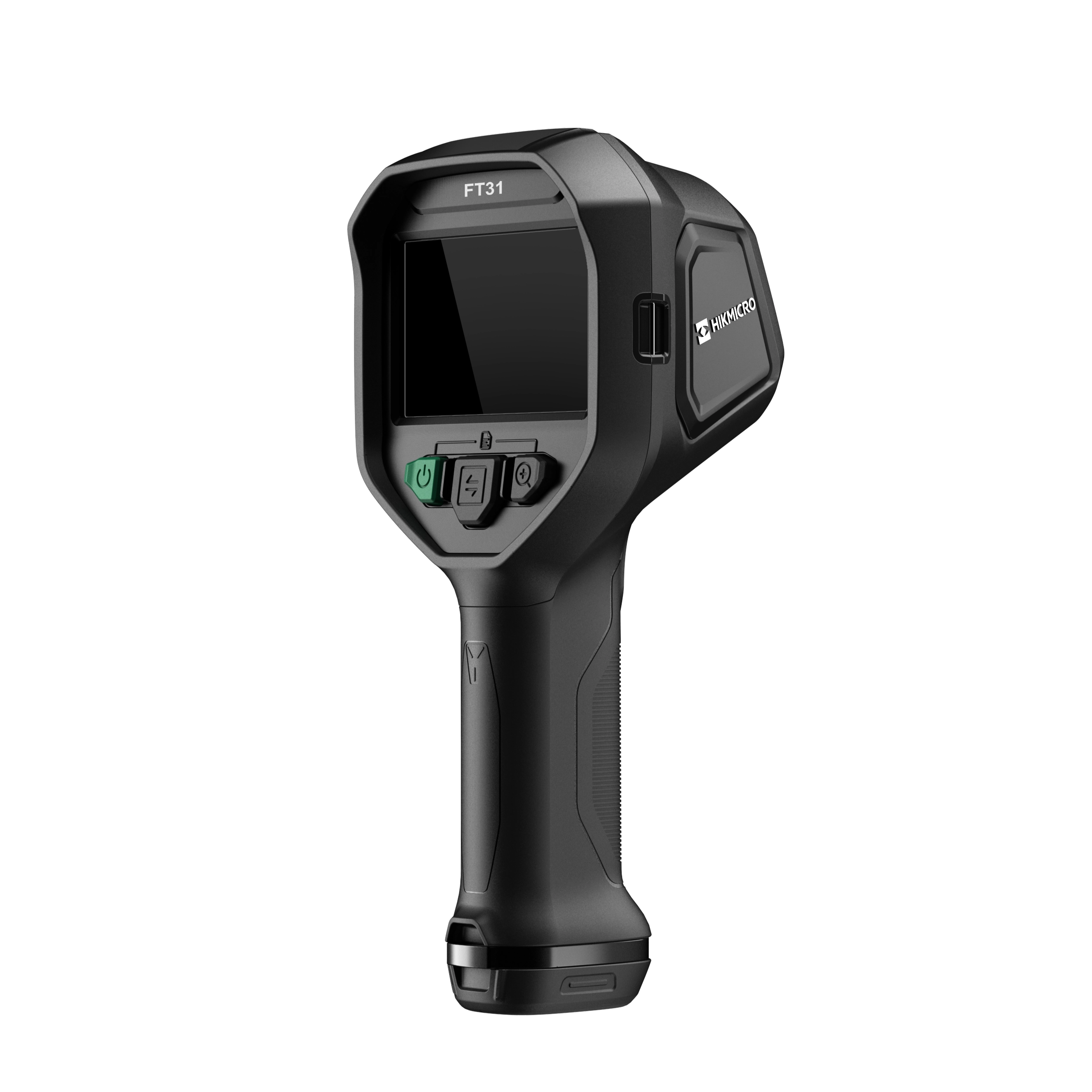

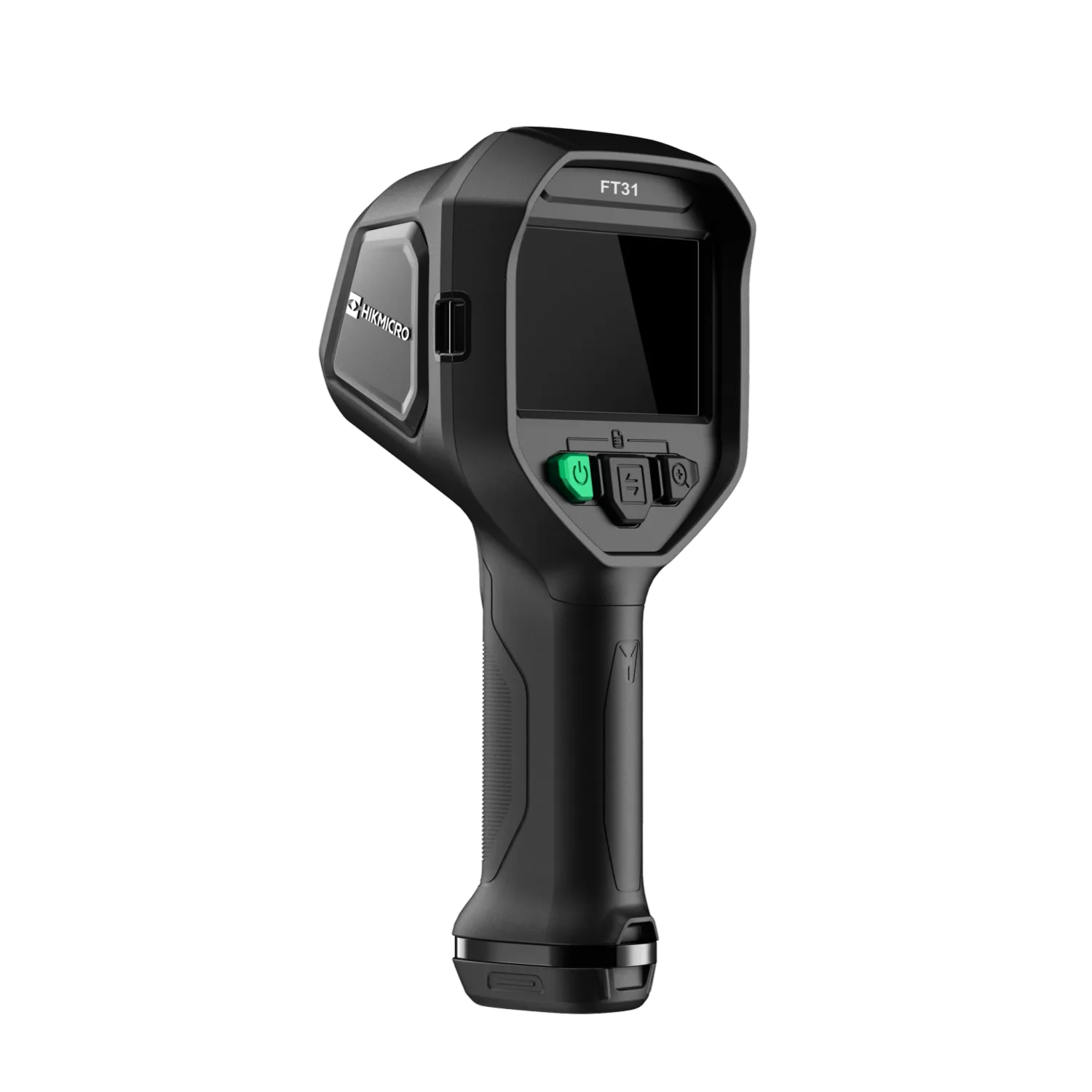

HIKMICRO FT31 Firefighting Camera photo 2

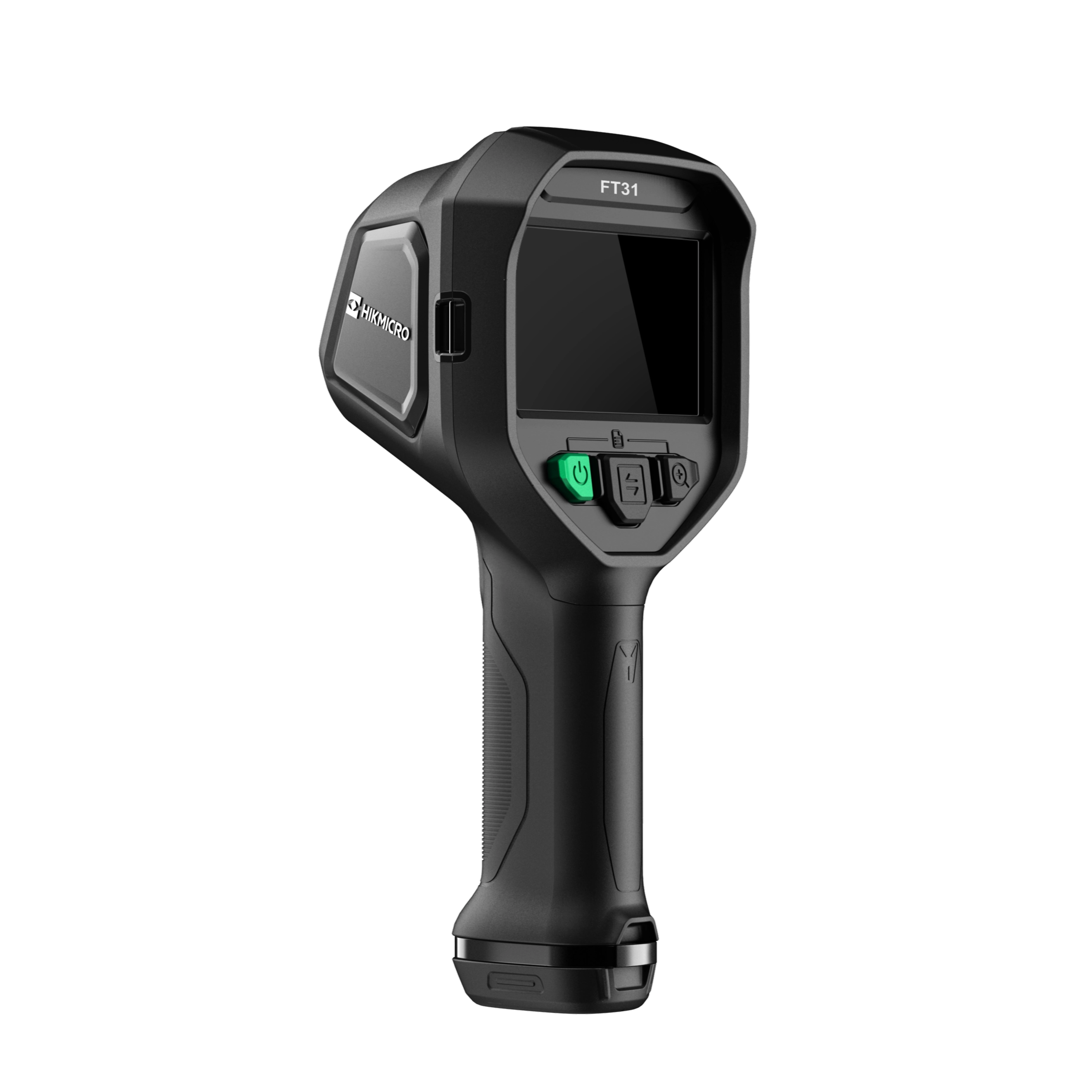

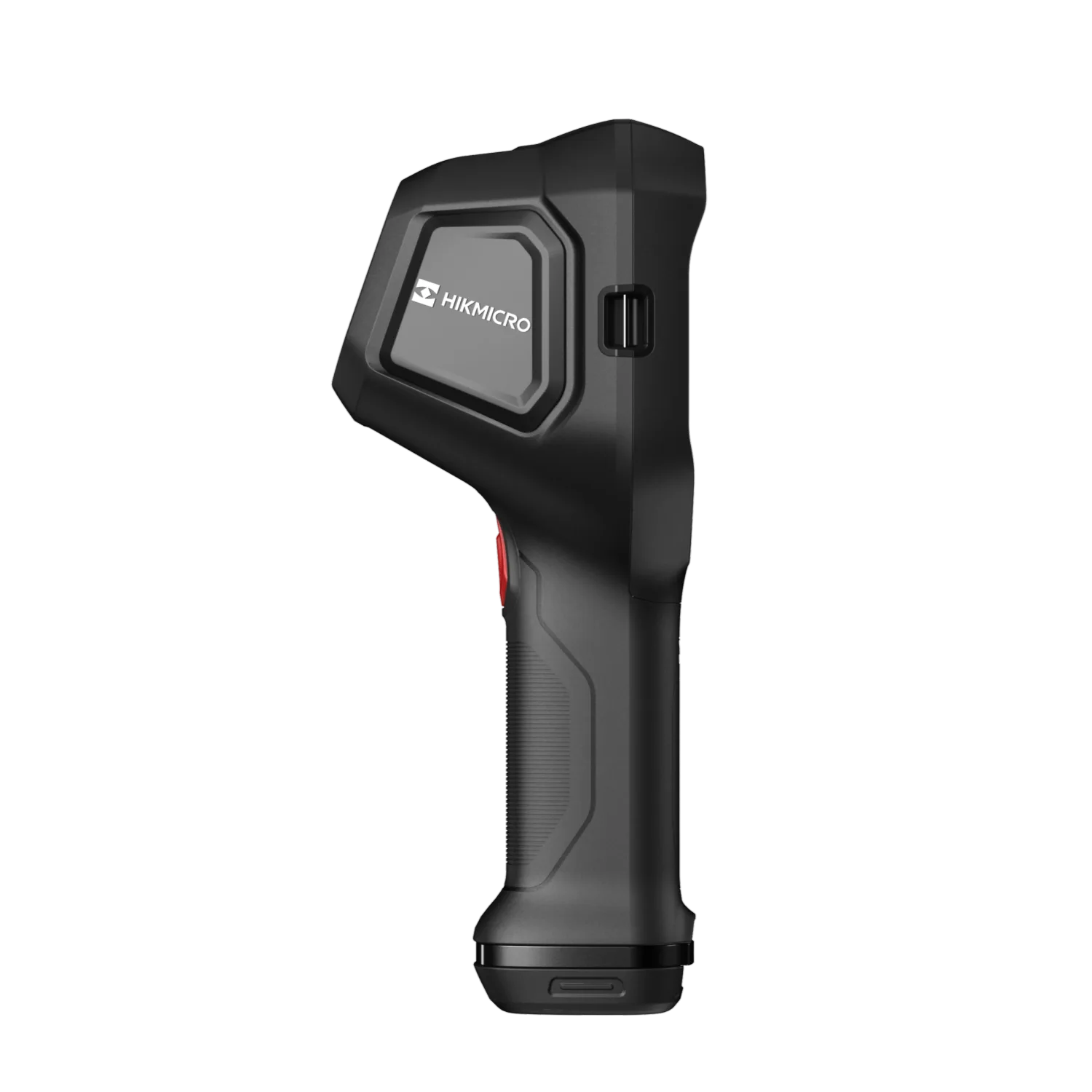

HIKMICRO FT31 Firefighting Camera photo 3

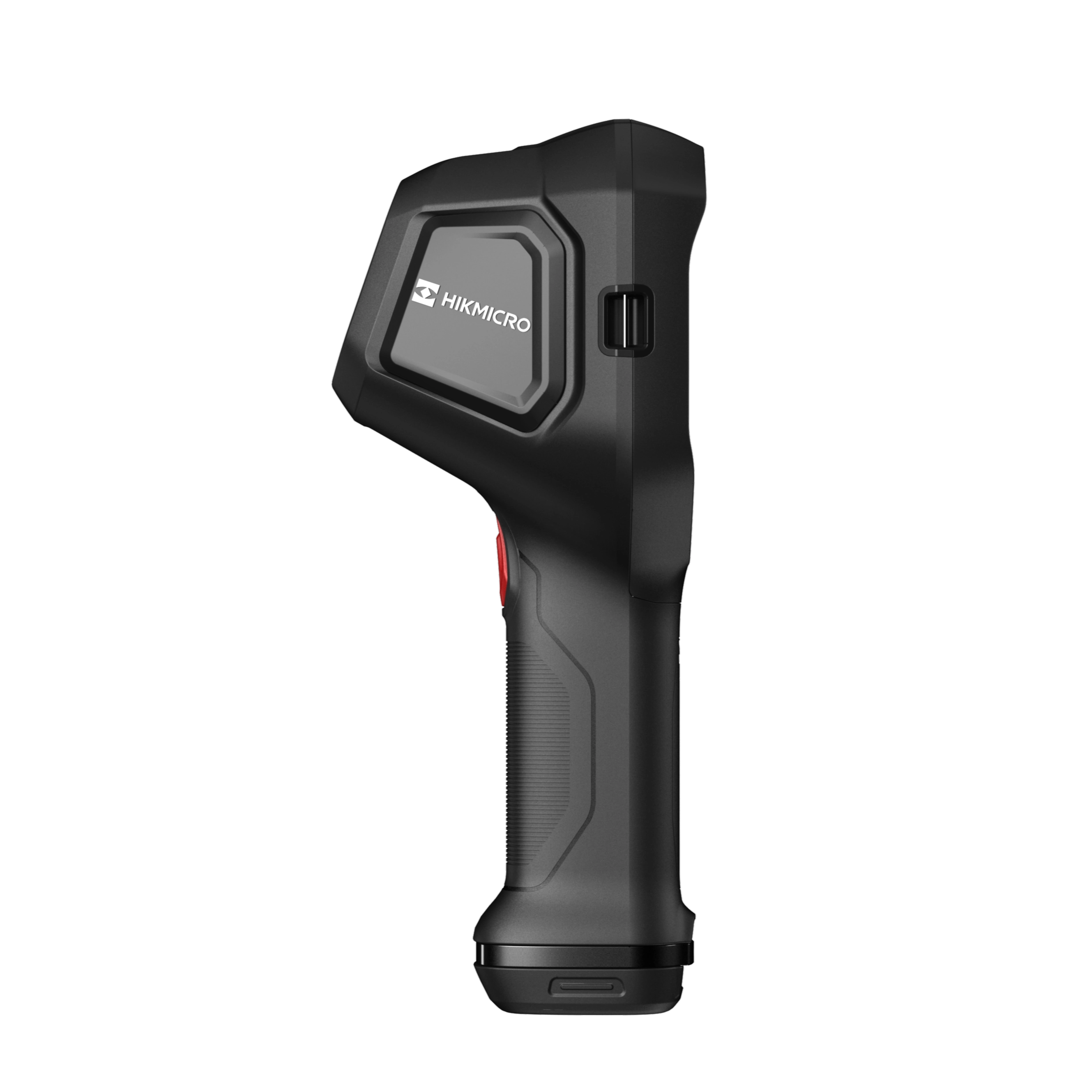

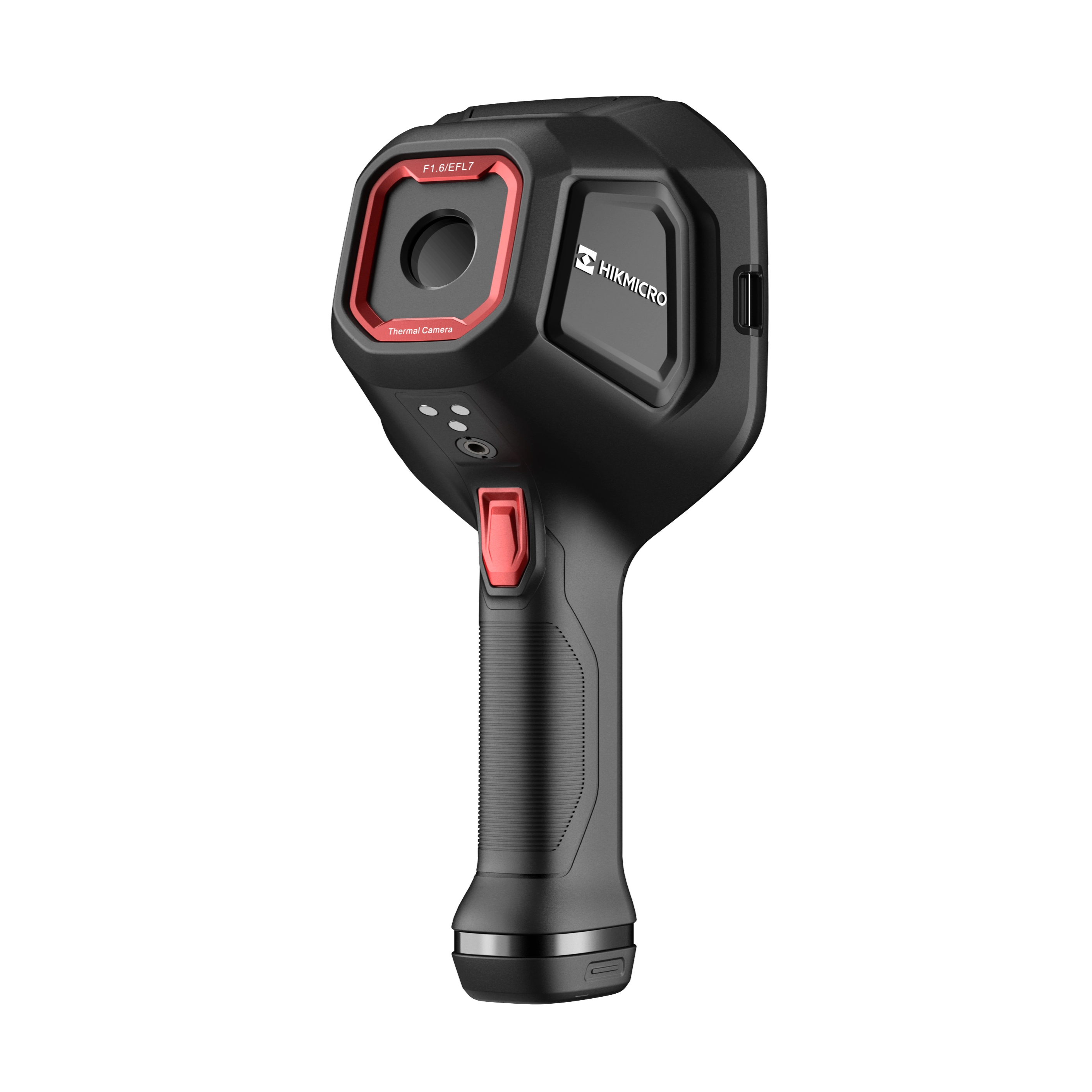

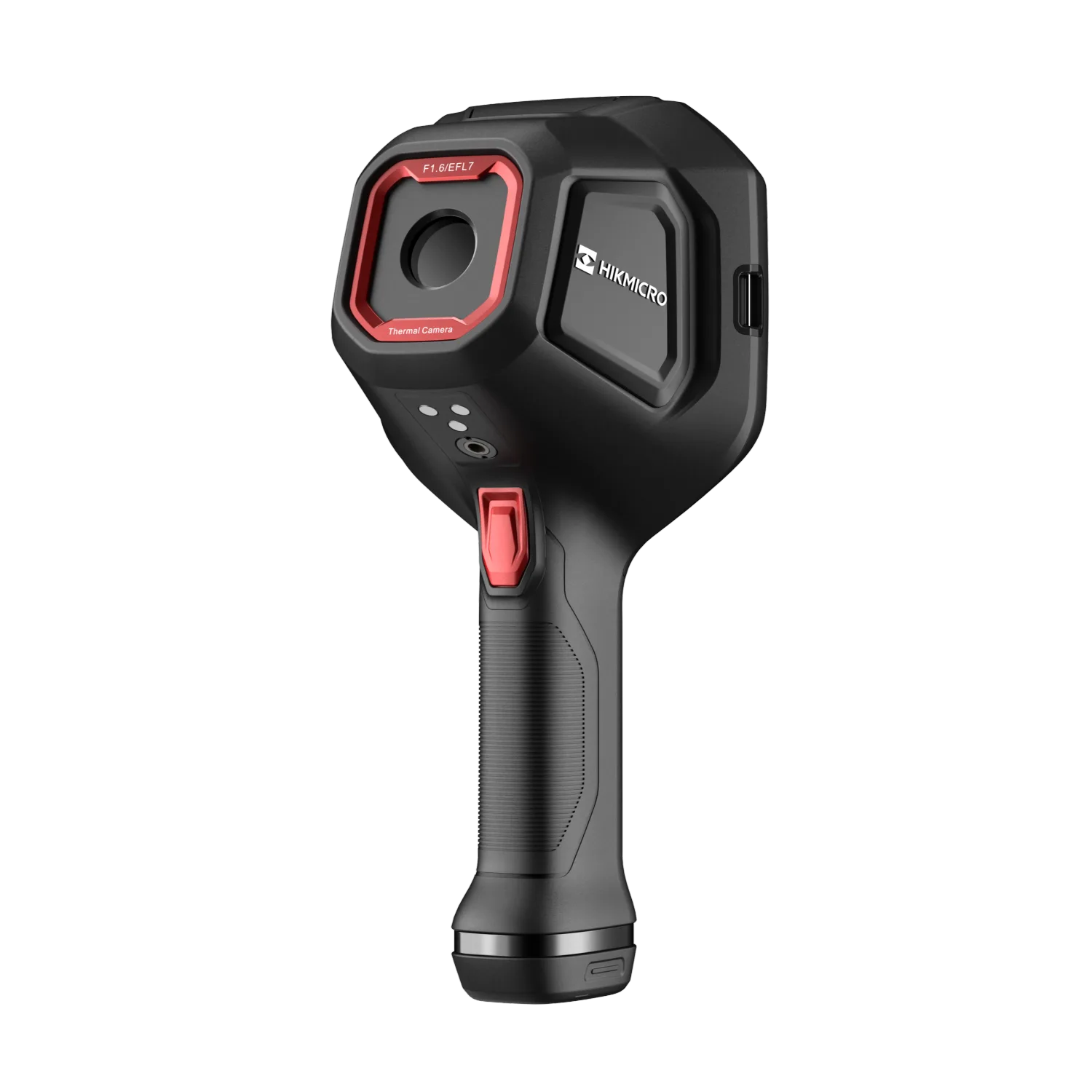

HIKMICRO FT31 Firefighting Camera photo 4
All Products
FT31
FT Series

FT31

The HIKMICRO FT31 is a firefighting thermal camera with 384×288 resolution and a fast 60 Hz frame rate. It suits fire and rescue teams in Malaysia, including BOMBA, industrial fire brigades and emergency response teams.

Use it to see through smoke, find casualties, locate the seat of the fire and check for hidden hot spots after a fire is out. It is built to withstand high heat. The 384×288 thermal sensor with under 30 mK sensitivity measures from -20°C to 1200°C. It has a 4.3-inch screen, about 6 hours of battery life and an IP67 rating.

Why buy from INFRAMATRIX? Genuine HIKMICRO firefighting cameras from INFRAMATRIX, an authorised HIKMICRO distributor in Malaysia, with a local service centre for after-sales support.

Compare with the HIKMICRO FP31 and HIKMICRO FB21. Keep it charged with the FT Series In-truck Charger.

Key specifications

  • Temperature range: -20°C to 1200°C
  • Thermal resolution: 384 x 288
  • NETD: < 30 mK
  • Frame rate: 60 Hz
  • Field of view: 54.1°× 40.2°
  • Focus: Focus Free
  • Spectral range: 7.5–14 μm
  • Display: 4.3" LCD Screen
  • Storage: 128 GB Internal (Flash Memory)
  • Battery life: Approx. 6 hours
  • Operating temperature: -20°C to 85°C
    150°C for 15 min
    260°C for 5 min
  • Protection rating: IP67
Request InfoView Brochure
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Details
Usage
Care

The FLIR Si2-Pro™ is an industrial-grade acoustic imaging camera designed to revolutionise maintenance and inspection workflows. Equipped with 124 MEMS microphones and AI-powered severity assessment, it excels in detecting partial discharges, pressurised air/gas leaks, and mechanical faults.

With built-in frequency tuning, precise leak quantification, and enterprise-level fleet management, this IP54-rated camera is an indispensable tool for industries focused on safety, efficiency, and cost savings.

The FLIR Si2-Pro™ is perfect for various industrial applications, including:

• Leak Detection: Identify and measure compressed air, gas, and other leaks from up to 200m away, minimizing energy losses and operational costs.

• Mechanical Fault Analysis: Detect bearing defects, misalignment, and other mechanical issues early to prevent equipment failures and reduce downtime.

• Partial Discharge Detection: Pinpoint electrical discharges in high-voltage systems, assess their severity, and classify PD types for targeted maintenance.

To maintain the FLIR Si2-Pro™ in peak condition:

• Regularly clean the camera’s sensors and microphones using appropriate tools to ensure precise measurements.

• Store the device in its provided hard transport case to protect it from dust, moisture, and physical damage.

• Update the camera firmware via OTA (Over-The-Air) updates to access the latest features and fixes.

• Schedule routine calibration and servicing to ensure long-term accuracy and performance.

Fire Fighting Cameras
Handheld Thermal Cameras
Specifications
The technical specifications of the FLIR Si2-Pro™ are as follows.
IR Resolution
240 × 180 pixels (43,200 pixels)
Thermal Sensitivity/NETD
<0.06°C (0.11°F) / <50 mK at 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Field of view (FOV)
33° × 25°
Digital Camera
5 MP
Image Modes
Thermal MSX, Thermal, Picture-in-Picture, Digital camera
Display
3.5 inches
640 × 480 color LCD
Storage Media
Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
