HF610
All Products
HF610
Heat-resistant Cameras

HF610

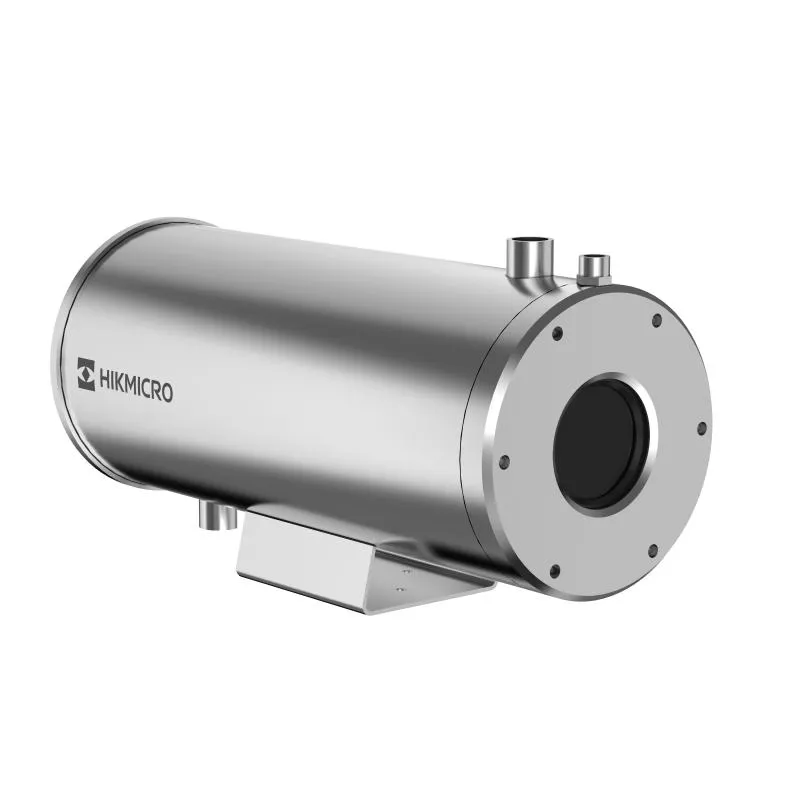

The HIKMICRO HF610 is a heat-resistant fixed thermal camera with 640×512 resolution and several lens options. It suits factories and process plants in Malaysia that need detailed, round-the-clock temperature monitoring.

Use it to monitor process lines, kilns, furnaces and conveyors, and to trigger alarms when temperatures go out of range. The 640×512 thermal sensor with 30 mK sensitivity measures from -20°C to 650°C. It runs at 50 frames per second and is rated IP67.

Why buy from INFRAMATRIX? Genuine HIKMICRO fixed thermal cameras from INFRAMATRIX, an authorised HIKMICRO distributor in Malaysia, with a local service centre for calibration and after-sales support. Our thermal imaging training helps your team read and act on the results.

Compare with the HIKMICRO HF310. For temperatures up to 1800°C, see the HM-TD2H67H1-25/Q.

Key specifications

  • Temperature range: -20°C to 650°C
  • Thermal resolution: 640 x 512
  • NETD: ≤ 30 mk
  • Frame rate: 50 fps
  • Field of view: 3mm: 90.0°×65.0°
    4 mm : 60.4°x44.9°
    8 mm : 34.0°×26.0°
    10 mm : 27.0°×20.4°
    18 mm : 13.7°x10.4°
  • Spectral range: 8–14 μm
  • Power supply: 12 V DC, Max. 3.5 W
  • Protection rating: IP67
Request InfoView Brochure
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Details
Usage
Care

The FLIR Si2-Pro™ is an industrial-grade acoustic imaging camera designed to revolutionise maintenance and inspection workflows. Equipped with 124 MEMS microphones and AI-powered severity assessment, it excels in detecting partial discharges, pressurised air/gas leaks, and mechanical faults.

With built-in frequency tuning, precise leak quantification, and enterprise-level fleet management, this IP54-rated camera is an indispensable tool for industries focused on safety, efficiency, and cost savings.

The FLIR Si2-Pro™ is perfect for various industrial applications, including:

• Leak Detection: Identify and measure compressed air, gas, and other leaks from up to 200m away, minimizing energy losses and operational costs.

• Mechanical Fault Analysis: Detect bearing defects, misalignment, and other mechanical issues early to prevent equipment failures and reduce downtime.

• Partial Discharge Detection: Pinpoint electrical discharges in high-voltage systems, assess their severity, and classify PD types for targeted maintenance.

To maintain the FLIR Si2-Pro™ in peak condition:

• Regularly clean the camera’s sensors and microphones using appropriate tools to ensure precise measurements.

• Store the device in its provided hard transport case to protect it from dust, moisture, and physical damage.

• Update the camera firmware via OTA (Over-The-Air) updates to access the latest features and fixes.

• Schedule routine calibration and servicing to ensure long-term accuracy and performance.

Fixed Mounted Cameras
Fixed Mounted Thermal Cameras
Specifications
The technical specifications of the FLIR Si2-Pro™ are as follows.
IR Resolution
240 × 180 pixels (43,200 pixels)
Thermal Sensitivity/NETD
<0.06°C (0.11°F) / <50 mK at 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Field of view (FOV)
33° × 25°
Digital Camera
5 MP
Image Modes
Thermal MSX, Thermal, Picture-in-Picture, Digital camera
Display
3.5 inches
640 × 480 color LCD
Storage Media
Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)

Download Brochure

Find out more about the specifications of this product

View Now
