HM-TD3118T-2/Q
All Products
HM-TD3118T-2/Q
Cube Series

HM-TD3118T-2/Q

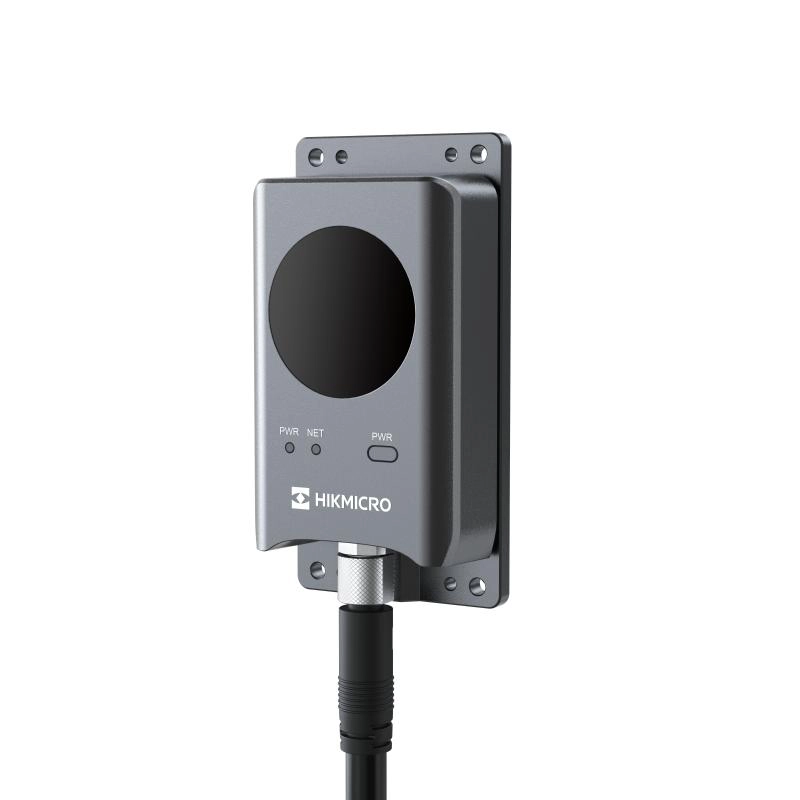

The HIKMICRO HM-TD3118T-2/Q is an entry-level cube thermal camera with a wide 90° view. It suits facilities and plants in Malaysia that want low-cost, continuous monitoring of many points.

Use it inside electrical cabinets and small equipment rooms to spot overheating early. The 160×120 thermal sensor with under 40 mK sensitivity measures from -20°C to 550°C. It runs at 25 frames per second and is rated IP67.

Why buy from INFRAMATRIX? Genuine HIKMICRO fixed thermal cameras from INFRAMATRIX, an authorised HIKMICRO distributor in Malaysia, with a local service centre for calibration and after-sales support. Our thermal imaging training helps your team read and act on the results.

For more resolution, see the HM-TD3028T-2/Q(B) and HM-TD3028T-3/Q(B).

Key specifications

  • Temperature range: -20°C to 550°C
  • Thermal resolution: 160 × 120 , output image is (320 × 240)
  • NETD: < 40 mK
  • Frame rate: 25 fps
  • Field of view: 90° × 66.5°
  • Spectral range: 8–14 μm
  • Power supply: 12 VDC ± 25%, Max. 2 W
  • Operating temperature: -10 °C to 60 °C
  • Protection rating: IP67
Request InfoView Brochure
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Details
Usage
Care

The FLIR Si2-Pro™ is an industrial-grade acoustic imaging camera designed to revolutionise maintenance and inspection workflows. Equipped with 124 MEMS microphones and AI-powered severity assessment, it excels in detecting partial discharges, pressurised air/gas leaks, and mechanical faults.

With built-in frequency tuning, precise leak quantification, and enterprise-level fleet management, this IP54-rated camera is an indispensable tool for industries focused on safety, efficiency, and cost savings.

The FLIR Si2-Pro™ is perfect for various industrial applications, including:

• Leak Detection: Identify and measure compressed air, gas, and other leaks from up to 200m away, minimizing energy losses and operational costs.

• Mechanical Fault Analysis: Detect bearing defects, misalignment, and other mechanical issues early to prevent equipment failures and reduce downtime.

• Partial Discharge Detection: Pinpoint electrical discharges in high-voltage systems, assess their severity, and classify PD types for targeted maintenance.

To maintain the FLIR Si2-Pro™ in peak condition:

• Regularly clean the camera’s sensors and microphones using appropriate tools to ensure precise measurements.

• Store the device in its provided hard transport case to protect it from dust, moisture, and physical damage.

• Update the camera firmware via OTA (Over-The-Air) updates to access the latest features and fixes.

• Schedule routine calibration and servicing to ensure long-term accuracy and performance.

Fixed Mounted Cameras
Fixed Mounted Thermal Cameras
Specifications
The technical specifications of the FLIR Si2-Pro™ are as follows.
IR Resolution
240 × 180 pixels (43,200 pixels)
Thermal Sensitivity/NETD
<0.06°C (0.11°F) / <50 mK at 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Field of view (FOV)
33° × 25°
Digital Camera
5 MP
Image Modes
Thermal MSX, Thermal, Picture-in-Picture, Digital camera
Display
3.5 inches
640 × 480 color LCD
Storage Media
Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
