QF310
All Products
QF310
Focus Free Box Cameras

QF310

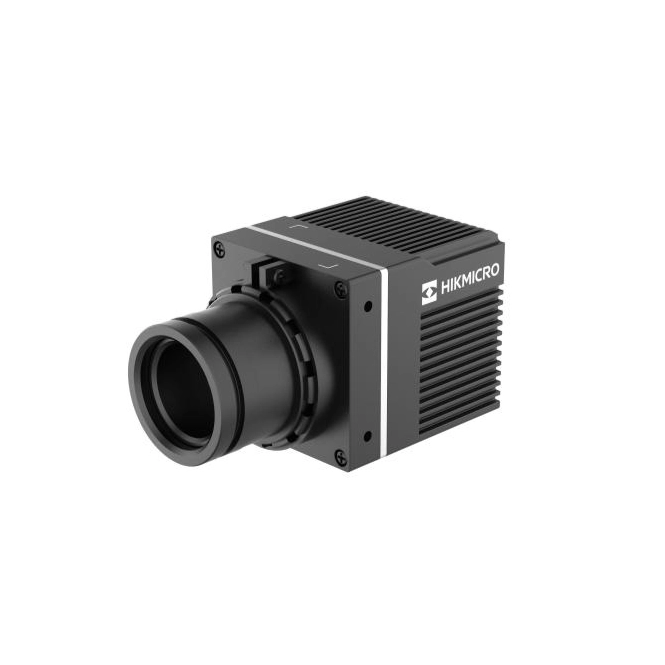

The HIKMICRO QF310 is a compact, focus-free box thermal camera with 384×288 resolution and a choice of lenses. It suits system integrators and automation teams in Malaysia building temperature monitoring into machines and production lines.

Use it for continuous monitoring of process lines, electrical equipment and products on the line. The 384×288 thermal sensor with 30 mK sensitivity measures from -20°C to 650°C. It runs at 50 frames per second and is rated IP40.

Why buy from INFRAMATRIX? Genuine HIKMICRO fixed thermal cameras from INFRAMATRIX, an authorised HIKMICRO distributor in Malaysia, with a local service centre for calibration and after-sales support. Our thermal imaging training helps your team read and act on the results.

For more resolution, see the HIKMICRO QF610. For a heat-resistant version, see the HIKMICRO HF310.

Key specifications

  • Temperature range: -20°C to 650°C
  • Thermal resolution: 384 × 288
  • NETD: ≤ 30 mk
  • Frame rate: 50 fps
  • Field of view: 3mm: 90.0°×65.0°
    4 mm : 60.4°x44.9°
    8 mm : 34.0°×26.0°
    10 mm : 27.0°×20.4°
    18 mm : 13.7°x10.4°
  • Spectral range: 8–14 μm
  • Power supply: 12 V DC, Max. 3.2 W
  • Operating temperature: -20 °C to 60 °C
  • Protection rating: IP40
Request InfoView Brochure
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Details
Usage
Care

The FLIR Si2-Pro™ is an industrial-grade acoustic imaging camera designed to revolutionise maintenance and inspection workflows. Equipped with 124 MEMS microphones and AI-powered severity assessment, it excels in detecting partial discharges, pressurised air/gas leaks, and mechanical faults.

With built-in frequency tuning, precise leak quantification, and enterprise-level fleet management, this IP54-rated camera is an indispensable tool for industries focused on safety, efficiency, and cost savings.

The FLIR Si2-Pro™ is perfect for various industrial applications, including:

• Leak Detection: Identify and measure compressed air, gas, and other leaks from up to 200m away, minimizing energy losses and operational costs.

• Mechanical Fault Analysis: Detect bearing defects, misalignment, and other mechanical issues early to prevent equipment failures and reduce downtime.

• Partial Discharge Detection: Pinpoint electrical discharges in high-voltage systems, assess their severity, and classify PD types for targeted maintenance.

To maintain the FLIR Si2-Pro™ in peak condition:

• Regularly clean the camera’s sensors and microphones using appropriate tools to ensure precise measurements.

• Store the device in its provided hard transport case to protect it from dust, moisture, and physical damage.

• Update the camera firmware via OTA (Over-The-Air) updates to access the latest features and fixes.

• Schedule routine calibration and servicing to ensure long-term accuracy and performance.

Fixed Mounted Cameras
Fixed Mounted Thermal Cameras
Specifications
The technical specifications of the FLIR Si2-Pro™ are as follows.
IR Resolution
240 × 180 pixels (43,200 pixels)
Thermal Sensitivity/NETD
<0.06°C (0.11°F) / <50 mK at 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Field of view (FOV)
33° × 25°
Digital Camera
5 MP
Image Modes
Thermal MSX, Thermal, Picture-in-Picture, Digital camera
Display
3.5 inches
640 × 480 color LCD
Storage Media
Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)

Download Brochure

Find out more about the specifications of this product

View Now
