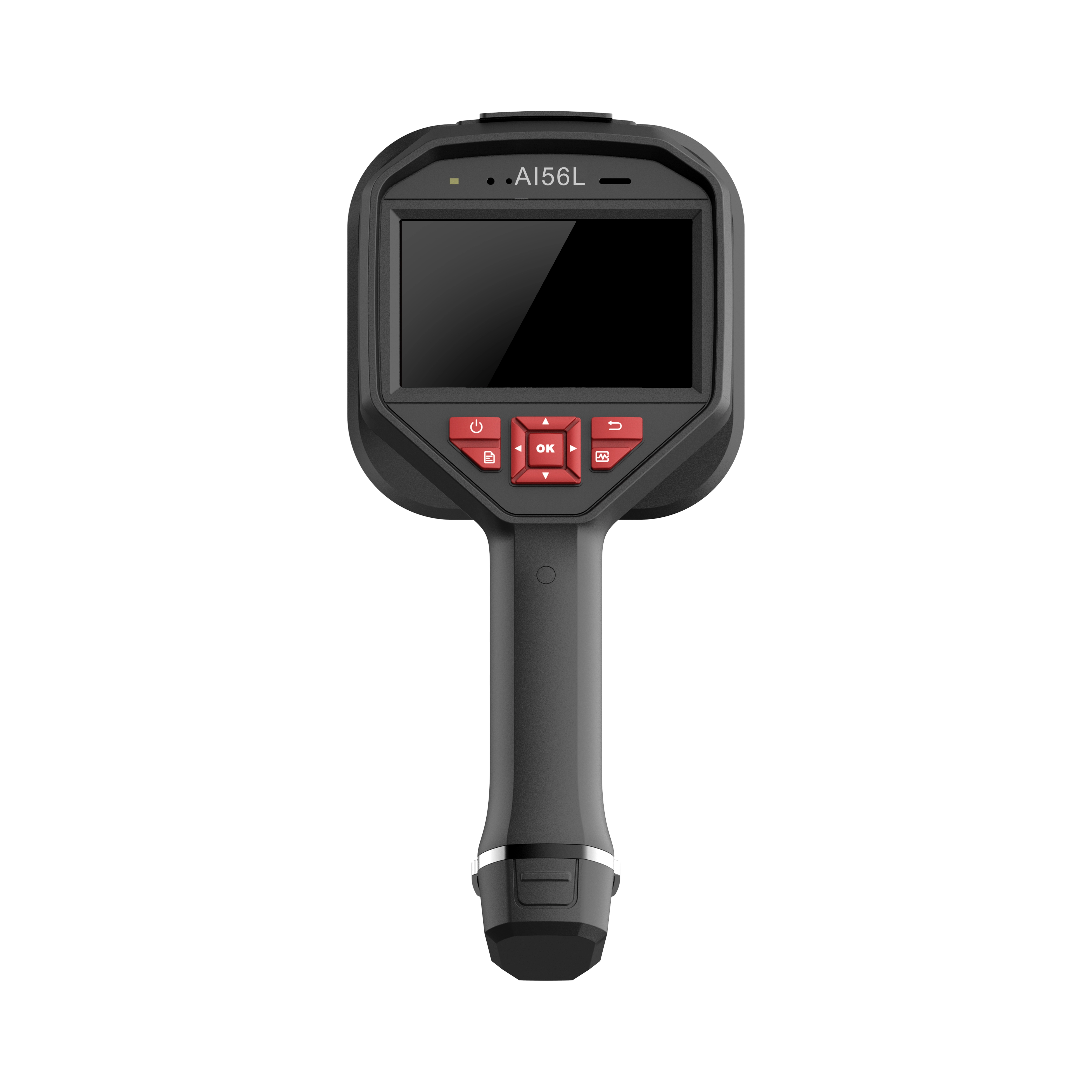

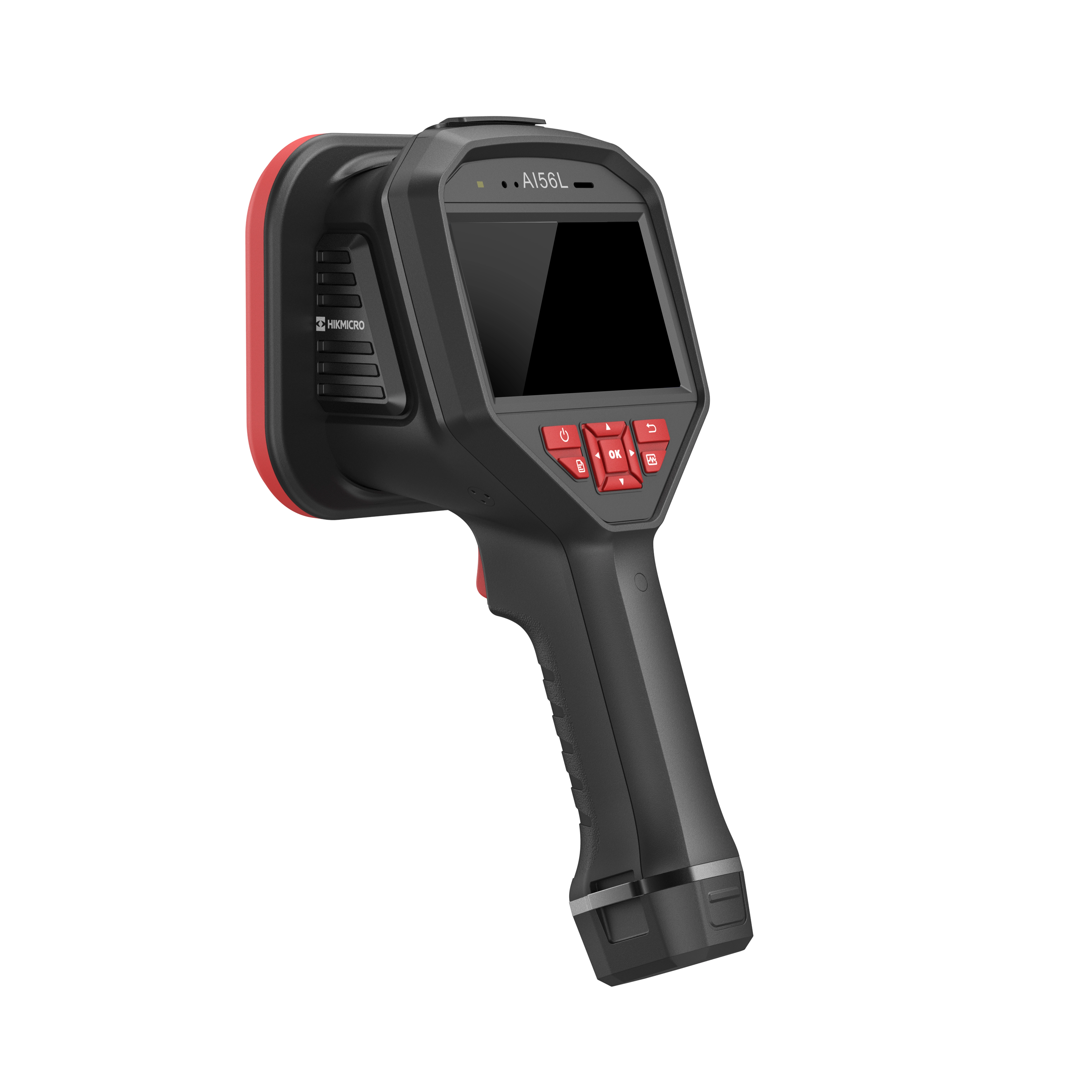

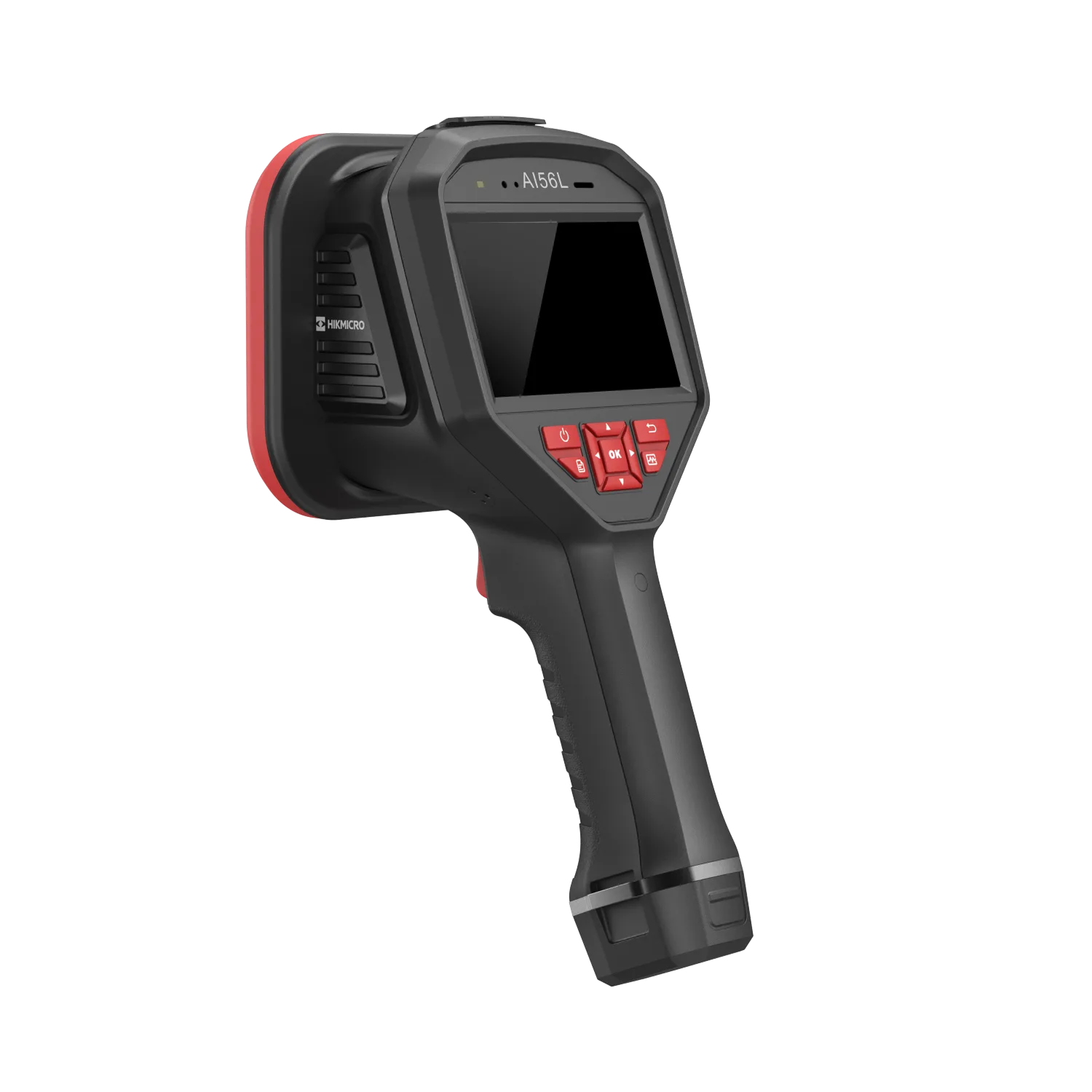

The HIKMICRO AI56L is an acoustic imaging camera for finding compressed-air, gas and vacuum leaks. It comes with three batteries for long leak surveys, and suits factories and maintenance teams in Malaysia looking to cut energy waste.

Use it to find leaks quickly in noisy plants and estimate leak size and cost for repair planning. For partial discharge detection, choose the AI56 instead.

Why buy from INFRAMATRIX? Genuine HIKMICRO acoustic products from INFRAMATRIX, an authorised HIKMICRO distributor in Malaysia, with a local service centre for after-sales support.

Compare with the HIKMICRO AI56 and HIKMICRO AI76.

Key specifications

  • Thermal resolution: 800 × 480
  • Frame rate: 25 fps
  • Field of view: 50.2°× 35.4°
  • Display: 4.3" LCD Touchscreen
  • Storage: Removable 64 GB SD Card (Up to 128 GB)
  • Battery life: Approx. 3.5 hours x3 for a total for a total of 10.5 hours
  • Operating temperature: -20°C to 50°C
  • Protection rating: IP54
  • Microphones: 64
  • Bandwidth: 0 kHz to 96 kHz, adjustable range MEMS sampling frequency: 192 kHz
  • Dynamic range: Low Limit: <-15 dB, High Limit: >120 dB
  • Leak rate: >0.008 l/min @ 6 bar from 0.5 m (1.64 ft)
    >0.013 l/min @ 5 bar from 1 m (3.28 ft)
Request InfoView Brochure
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Details
Usage
Care

The FLIR Si2-Pro™ is an industrial-grade acoustic imaging camera designed to revolutionise maintenance and inspection workflows. Equipped with 124 MEMS microphones and AI-powered severity assessment, it excels in detecting partial discharges, pressurised air/gas leaks, and mechanical faults.

With built-in frequency tuning, precise leak quantification, and enterprise-level fleet management, this IP54-rated camera is an indispensable tool for industries focused on safety, efficiency, and cost savings.

The FLIR Si2-Pro™ is perfect for various industrial applications, including:

• Leak Detection: Identify and measure compressed air, gas, and other leaks from up to 200m away, minimizing energy losses and operational costs.

• Mechanical Fault Analysis: Detect bearing defects, misalignment, and other mechanical issues early to prevent equipment failures and reduce downtime.

• Partial Discharge Detection: Pinpoint electrical discharges in high-voltage systems, assess their severity, and classify PD types for targeted maintenance.

To maintain the FLIR Si2-Pro™ in peak condition:

• Regularly clean the camera’s sensors and microphones using appropriate tools to ensure precise measurements.

• Store the device in its provided hard transport case to protect it from dust, moisture, and physical damage.

• Update the camera firmware via OTA (Over-The-Air) updates to access the latest features and fixes.

• Schedule routine calibration and servicing to ensure long-term accuracy and performance.

Acoustic Imaging Cameras
Acoustic Imaging Cameras
Specifications
The technical specifications of the FLIR Si2-Pro™ are as follows.
IR Resolution
240 × 180 pixels (43,200 pixels)
Thermal Sensitivity/NETD
<0.06°C (0.11°F) / <50 mK at 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Field of view (FOV)
33° × 25°
Digital Camera
5 MP
Image Modes
Thermal MSX, Thermal, Picture-in-Picture, Digital camera
Display
3.5 inches
640 × 480 color LCD
Storage Media
Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
