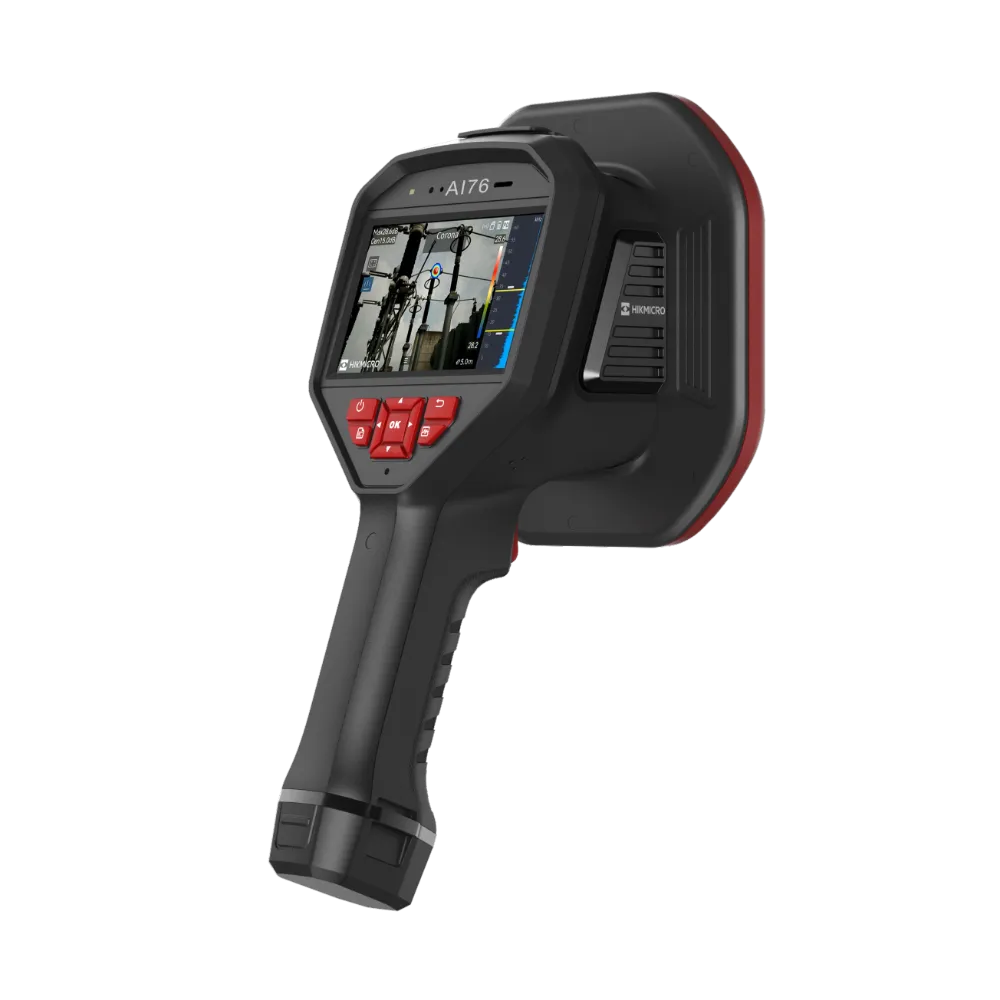

AI76

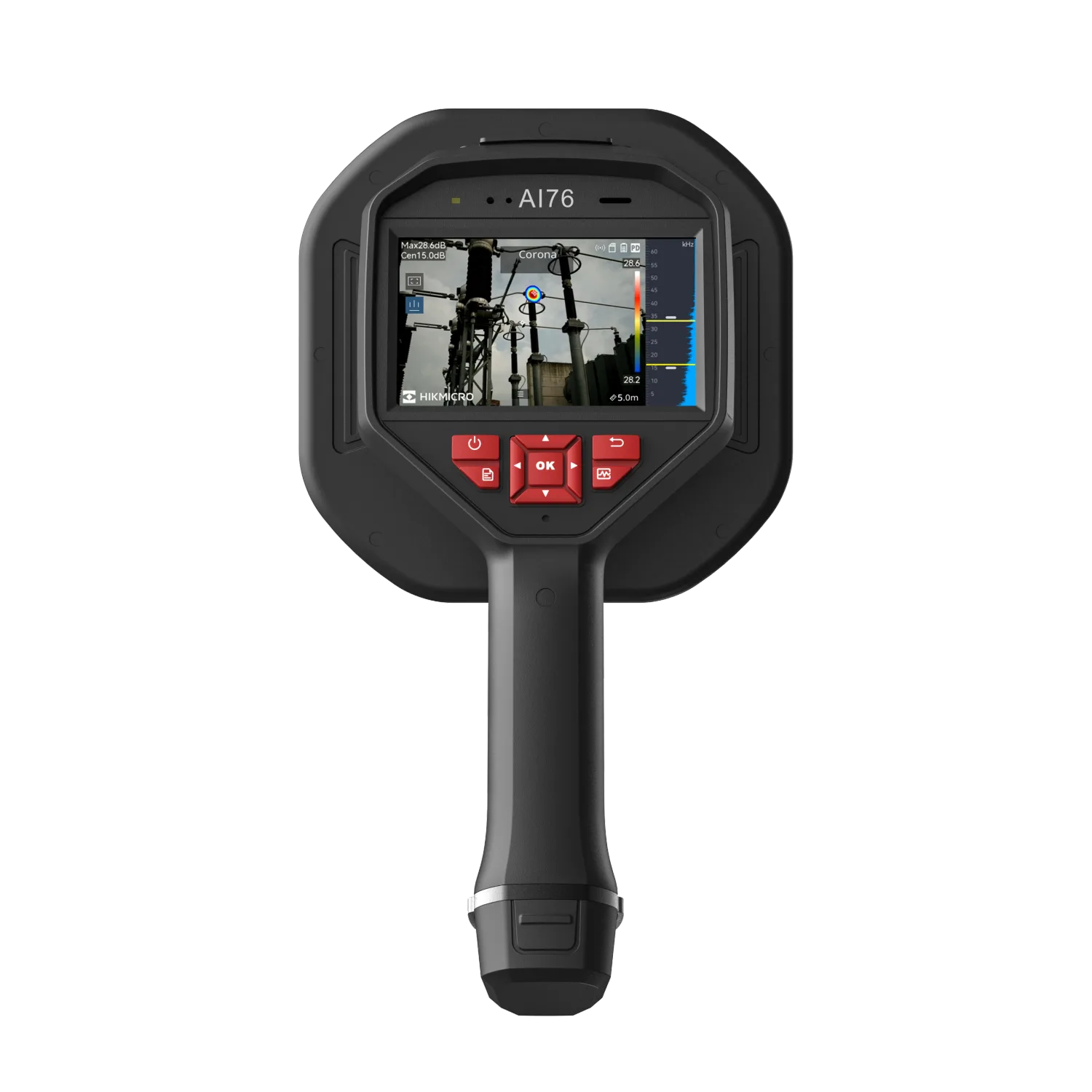

HIKMICRO AI76 Acoustic Camera photo 1

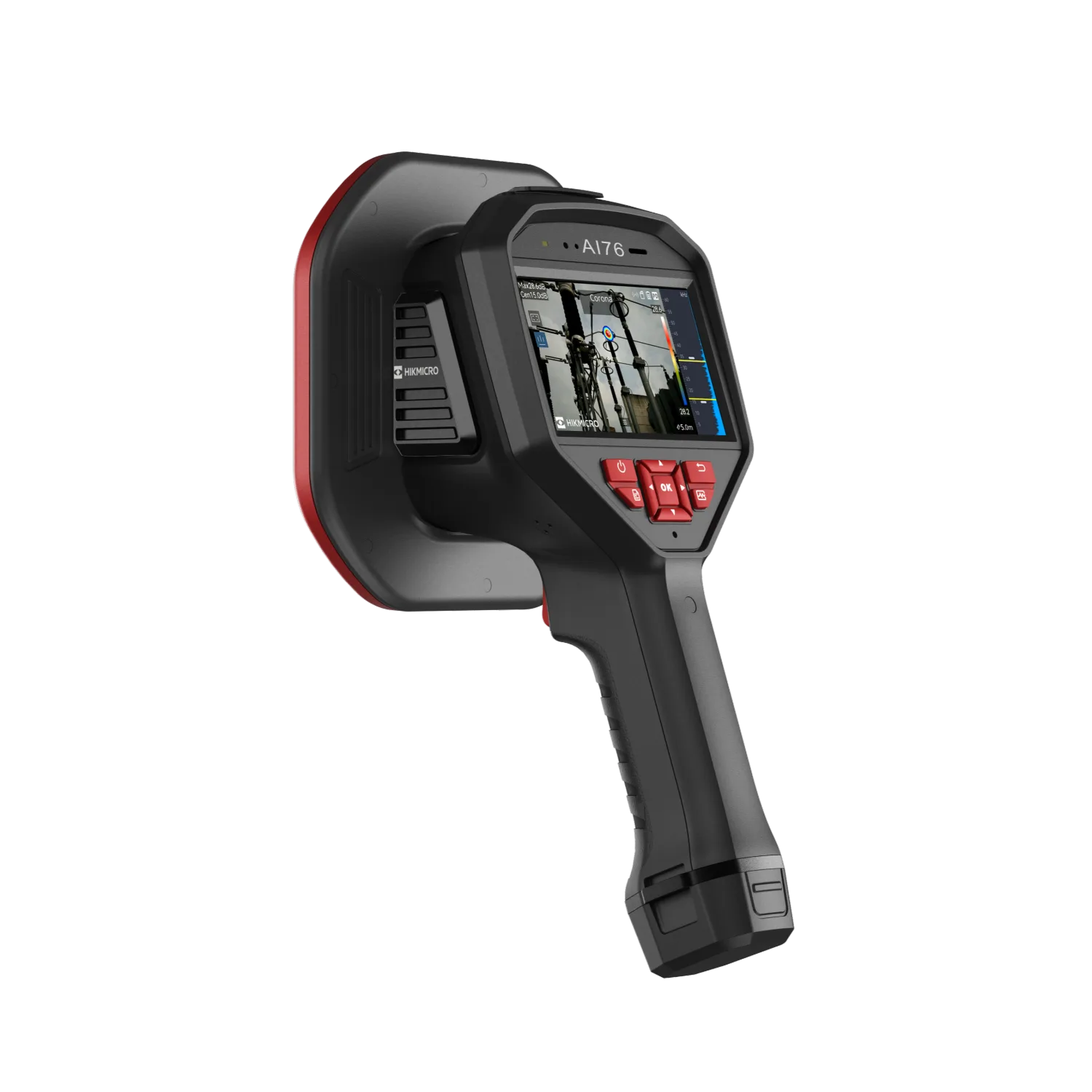

HIKMICRO AI76 Acoustic Camera photo 2

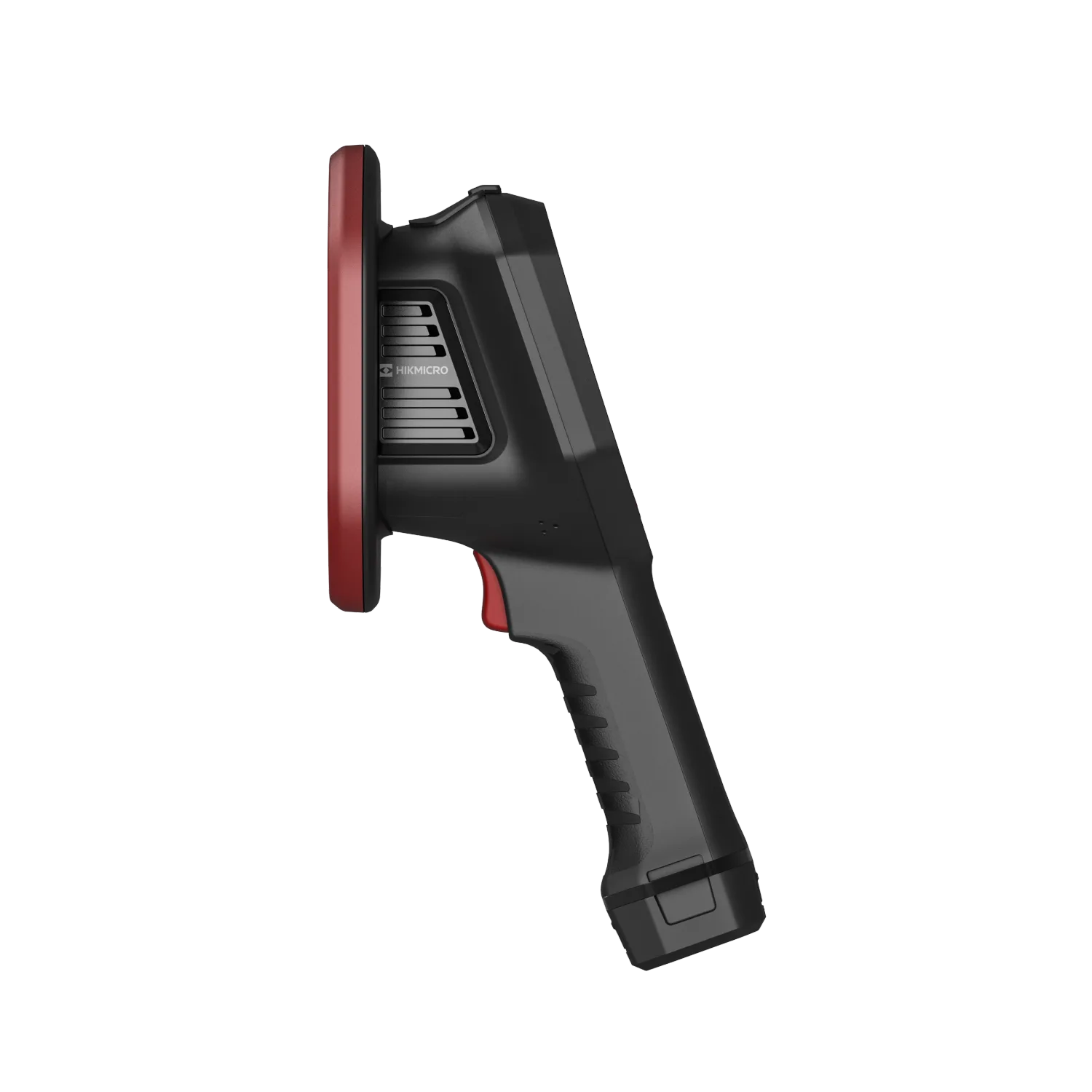

HIKMICRO AI76 Acoustic Camera photo 3

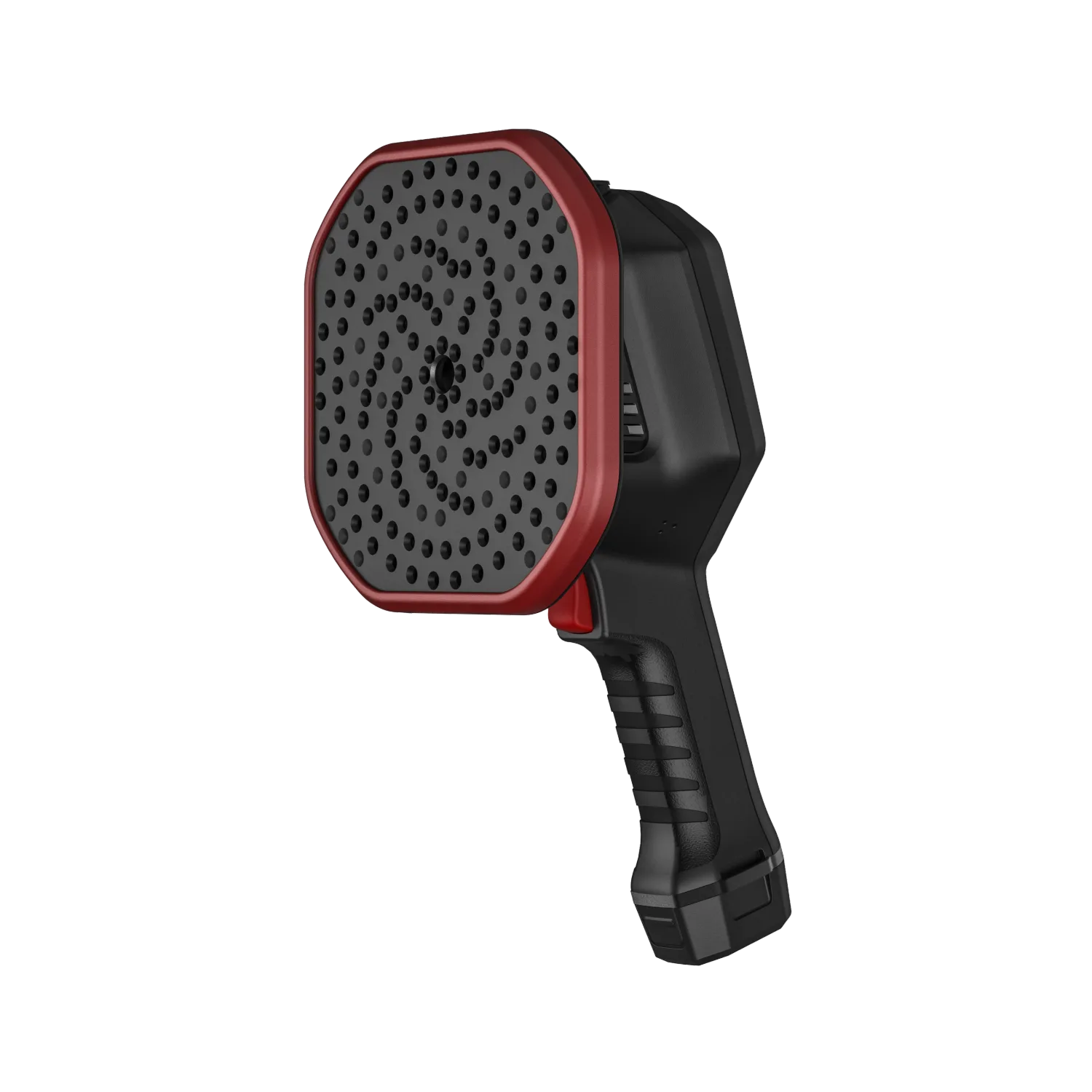

HIKMICRO AI76 Acoustic Camera photo 4
All Products
AI76
AI Series

AI76

The HIKMICRO AI76 is a high-end acoustic imaging camera with 136 microphones for finding very small leaks and electrical discharge. It suits utilities, petrochemical plants and large factories in Malaysia.

Use it to find compressed-air, gas and vacuum leaks and partial discharge from a safe distance, even in noisy environments.

Why buy from INFRAMATRIX? Genuine HIKMICRO acoustic products from INFRAMATRIX, an authorised HIKMICRO distributor in Malaysia, with a local service centre for after-sales support.

Compare with the HIKMICRO AI56 and HIKMICRO AI56L.

Key specifications

  • Thermal resolution: 800 × 480
  • Frame rate: 25 fps
  • Field of view: 50.2°× 35.4°
  • Display: 4.3" LCD Touchscreen
  • Storage: Removable 64 GB SD Card (Up to 128 GB)
  • Battery life: Approx. 2 hours
  • Operating temperature: -20°C to 50°C
  • Protection rating: IP54
  • Microphones: 136
  • Bandwidth: 0 kHz to 96 kHz, adjustable range MEMS sampling frequency: 192 kHz
  • Dynamic range: Low Limit: <-15 dB, High Limit: >120 dB
  • Leak rate: >0.0047 l/min @ 6 bar from 0.5 m (1.64 ft)
    >0.0073 l/min @ 5 bar from 1 m (3.28 ft)
Request InfoView Brochure
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Details
Usage
Care

The FLIR Si2-Pro™ is an industrial-grade acoustic imaging camera designed to revolutionise maintenance and inspection workflows. Equipped with 124 MEMS microphones and AI-powered severity assessment, it excels in detecting partial discharges, pressurised air/gas leaks, and mechanical faults.

With built-in frequency tuning, precise leak quantification, and enterprise-level fleet management, this IP54-rated camera is an indispensable tool for industries focused on safety, efficiency, and cost savings.

The FLIR Si2-Pro™ is perfect for various industrial applications, including:

• Leak Detection: Identify and measure compressed air, gas, and other leaks from up to 200m away, minimizing energy losses and operational costs.

• Mechanical Fault Analysis: Detect bearing defects, misalignment, and other mechanical issues early to prevent equipment failures and reduce downtime.

• Partial Discharge Detection: Pinpoint electrical discharges in high-voltage systems, assess their severity, and classify PD types for targeted maintenance.

To maintain the FLIR Si2-Pro™ in peak condition:

• Regularly clean the camera’s sensors and microphones using appropriate tools to ensure precise measurements.

• Store the device in its provided hard transport case to protect it from dust, moisture, and physical damage.

• Update the camera firmware via OTA (Over-The-Air) updates to access the latest features and fixes.

• Schedule routine calibration and servicing to ensure long-term accuracy and performance.

Acoustic Imaging Cameras
Acoustic Imaging Cameras
Specifications
The technical specifications of the FLIR Si2-Pro™ are as follows.
IR Resolution
240 × 180 pixels (43,200 pixels)
Thermal Sensitivity/NETD
<0.06°C (0.11°F) / <50 mK at 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Field of view (FOV)
33° × 25°
Digital Camera
5 MP
Image Modes
Thermal MSX, Thermal, Picture-in-Picture, Digital camera
Display
3.5 inches
640 × 480 color LCD
Storage Media
Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
