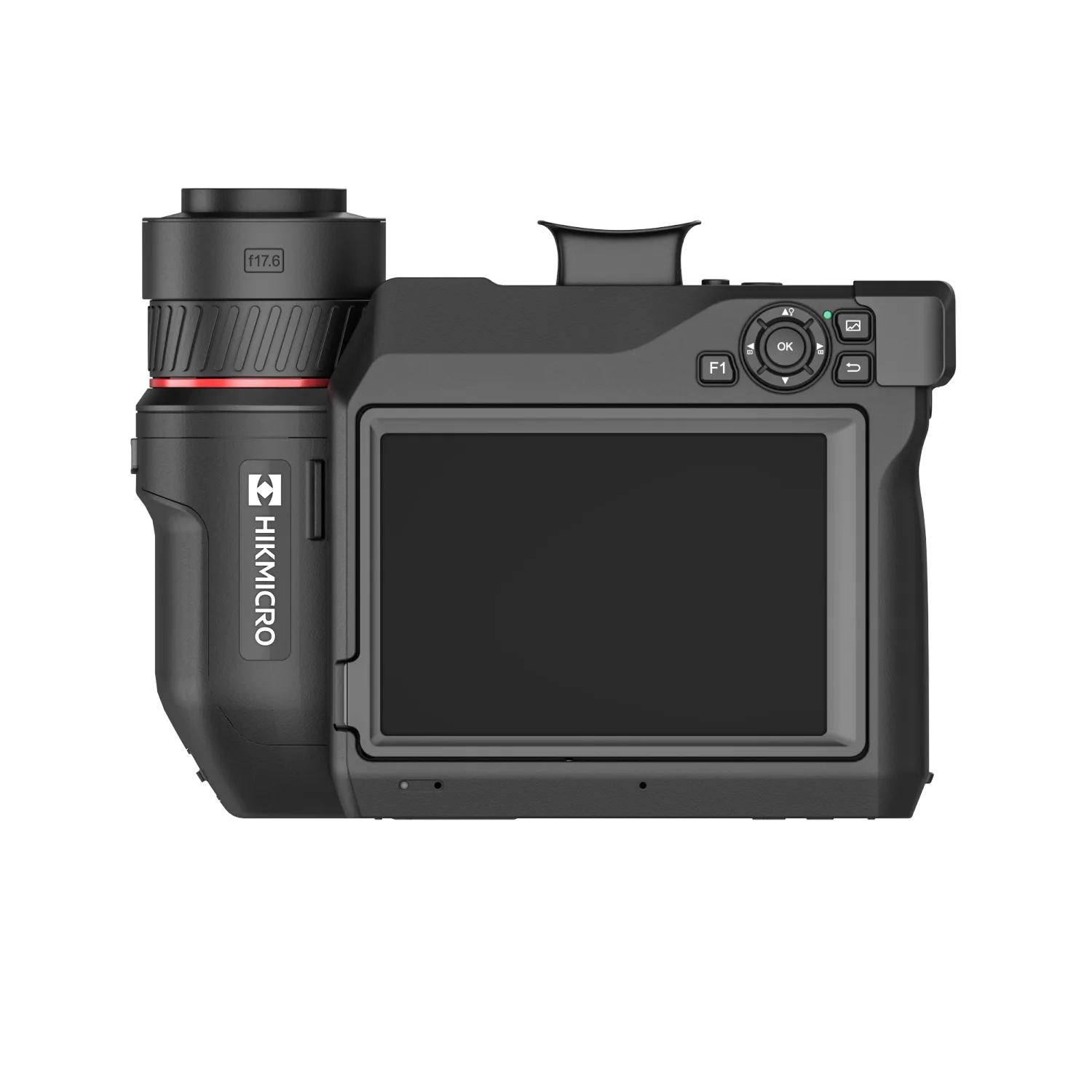

HIKMICRO SP120H photo 1

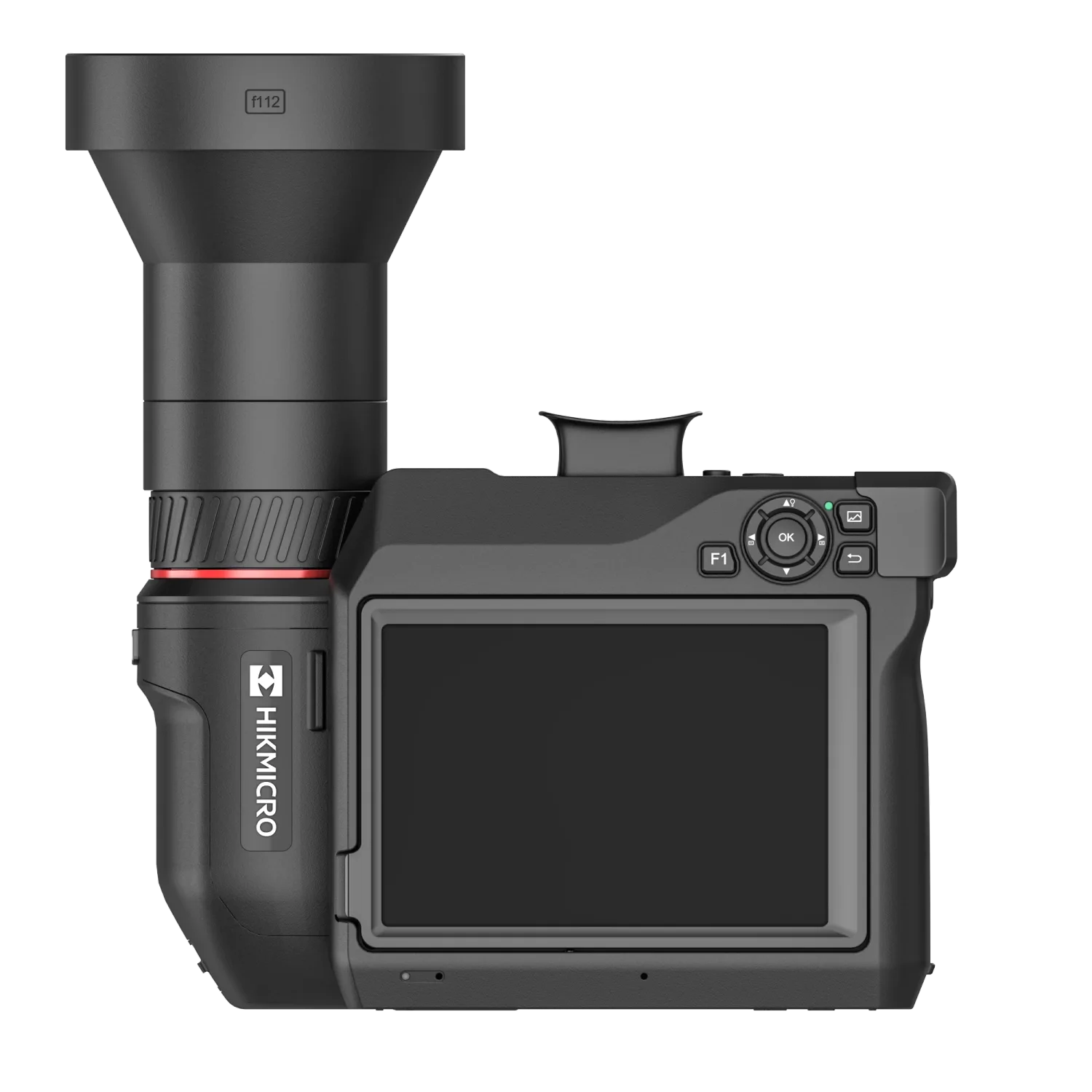

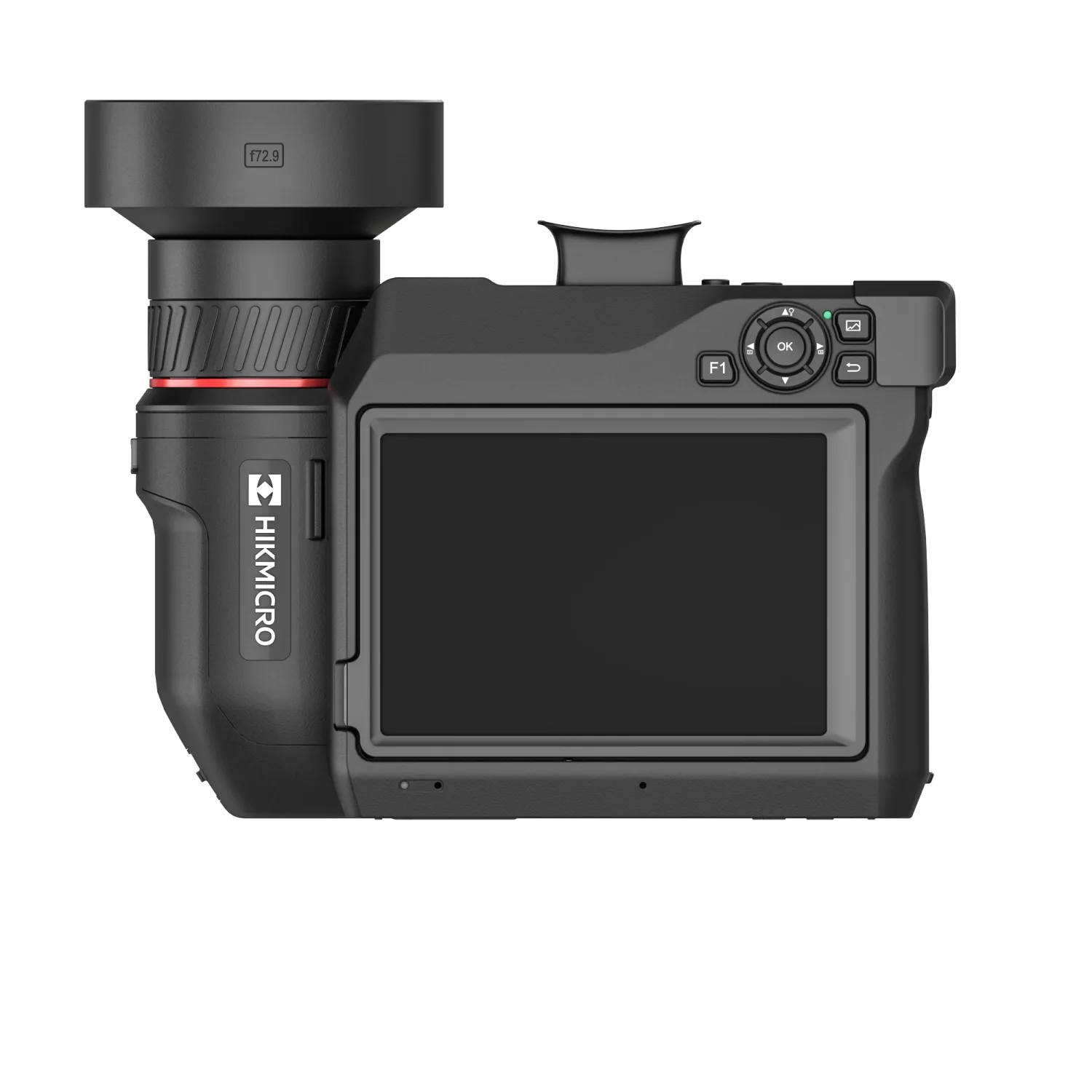

HIKMICRO SP120H photo 2
HIKMICRO SP120H photo 3
All Products
SP120H
SP Series

SP120H

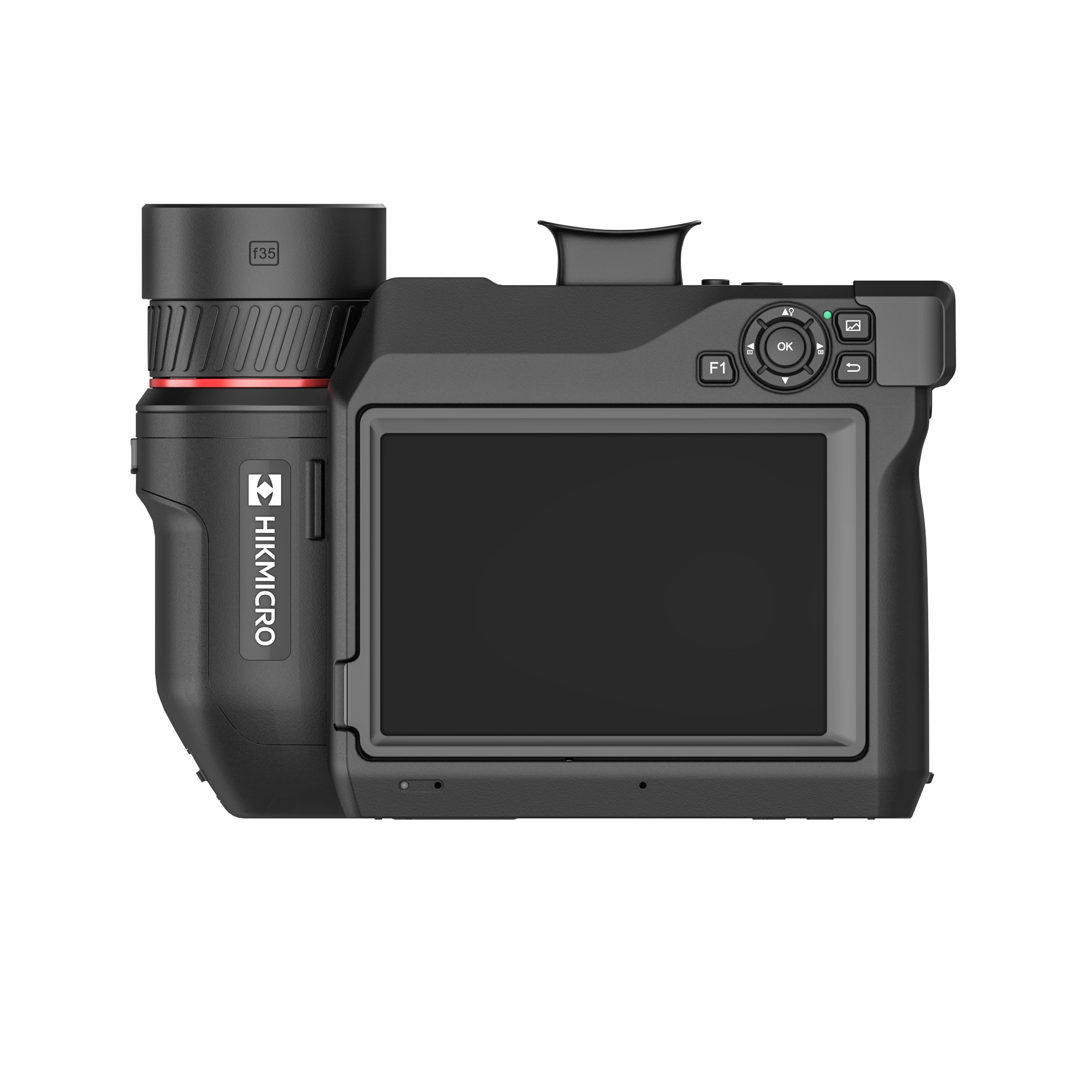

The HIKMICRO SP120H is HIKMICRO's highest-resolution handheld thermal camera, with 1280×1024 resolution and a range from -40°C to 2200°C. It suits R&D labs, power utilities and heavy industry in Malaysia that need the finest detail.

Use it for research, electronics testing, long-distance utility surveys and high-temperature processes, with interchangeable lenses. The 1280×1024 thermal sensor with under 20 mK sensitivity measures from -40°C to 2200°C. It has a 5.1-inch OLED touchscreen, about 4 hours of battery life and an IP54 rating.

Why buy from INFRAMATRIX? Genuine HIKMICRO cameras from INFRAMATRIX, an authorised HIKMICRO distributor in Malaysia, with a local service centre for calibration and after-sales support. New to thermal imaging? Our thermal imaging training teaches your team to use it properly.

Compare with the HIKMICRO SP100H and HIKMICRO SP60H.

Key specifications

  • Temperature range: -40°C to 2200°C
  • Thermal resolution: 1280 × 1024
  • NETD: < 20 mK
  • Frame rate: 30 Hz
  • Field of view: L8: 7.9° × 6.3°; L12: 12° × 9.6°; L25: 25° × 20°; L50: 50° × 40°
  • Focus: Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF
  • Spectral range: 7.5–14 μm
  • Display: 5.1" OLED Touchscreen
  • Storage: Removable 128 GB SD Card
  • Battery life: Approx. 4 hours
  • Operating temperature: -20°C to 50°C
  • Protection rating: IP54
Request InfoView Brochure
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Details
Usage
Care

The FLIR Si2-Pro™ is an industrial-grade acoustic imaging camera designed to revolutionise maintenance and inspection workflows. Equipped with 124 MEMS microphones and AI-powered severity assessment, it excels in detecting partial discharges, pressurised air/gas leaks, and mechanical faults.

With built-in frequency tuning, precise leak quantification, and enterprise-level fleet management, this IP54-rated camera is an indispensable tool for industries focused on safety, efficiency, and cost savings.

The FLIR Si2-Pro™ is perfect for various industrial applications, including:

• Leak Detection: Identify and measure compressed air, gas, and other leaks from up to 200m away, minimizing energy losses and operational costs.

• Mechanical Fault Analysis: Detect bearing defects, misalignment, and other mechanical issues early to prevent equipment failures and reduce downtime.

• Partial Discharge Detection: Pinpoint electrical discharges in high-voltage systems, assess their severity, and classify PD types for targeted maintenance.

To maintain the FLIR Si2-Pro™ in peak condition:

• Regularly clean the camera’s sensors and microphones using appropriate tools to ensure precise measurements.

• Store the device in its provided hard transport case to protect it from dust, moisture, and physical damage.

• Update the camera firmware via OTA (Over-The-Air) updates to access the latest features and fixes.

• Schedule routine calibration and servicing to ensure long-term accuracy and performance.

Handheld Thermal Cameras
Handheld Thermal Cameras
Specifications
The technical specifications of the FLIR Si2-Pro™ are as follows.
IR Resolution
240 × 180 pixels (43,200 pixels)
Thermal Sensitivity/NETD
<0.06°C (0.11°F) / <50 mK at 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Field of view (FOV)
33° × 25°
Digital Camera
5 MP
Image Modes
Thermal MSX, Thermal, Picture-in-Picture, Digital camera
Display
3.5 inches
640 × 480 color LCD
Storage Media
Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
