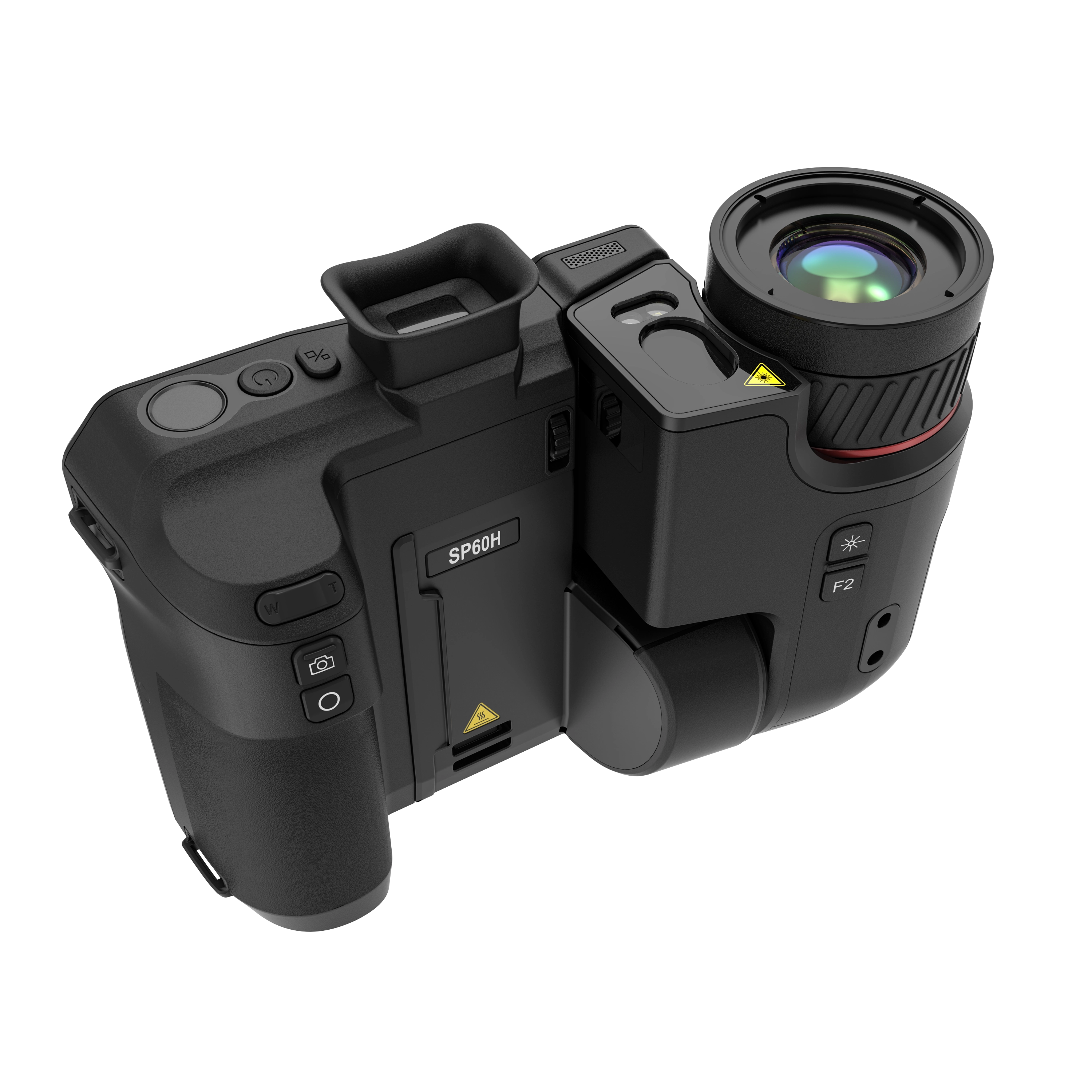

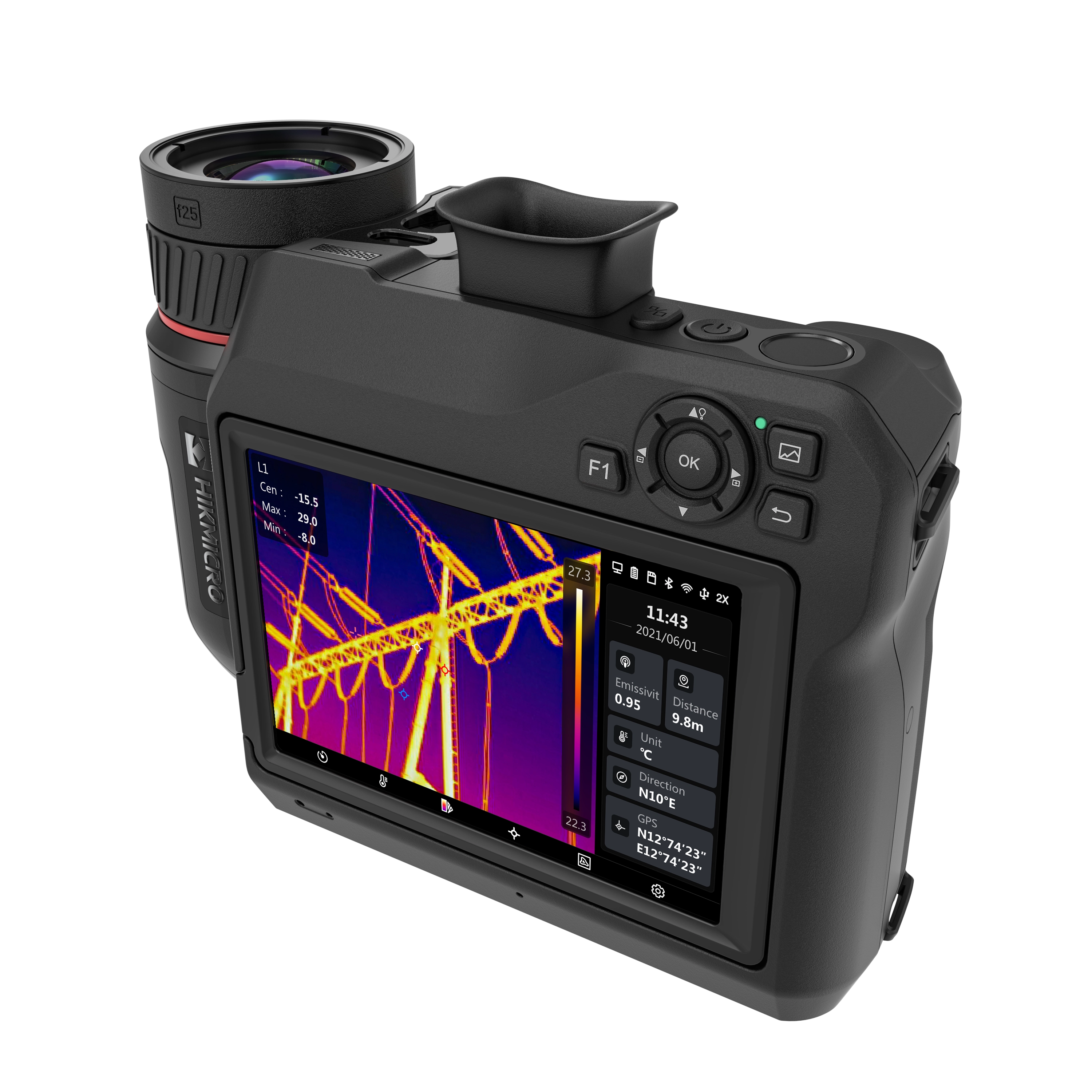

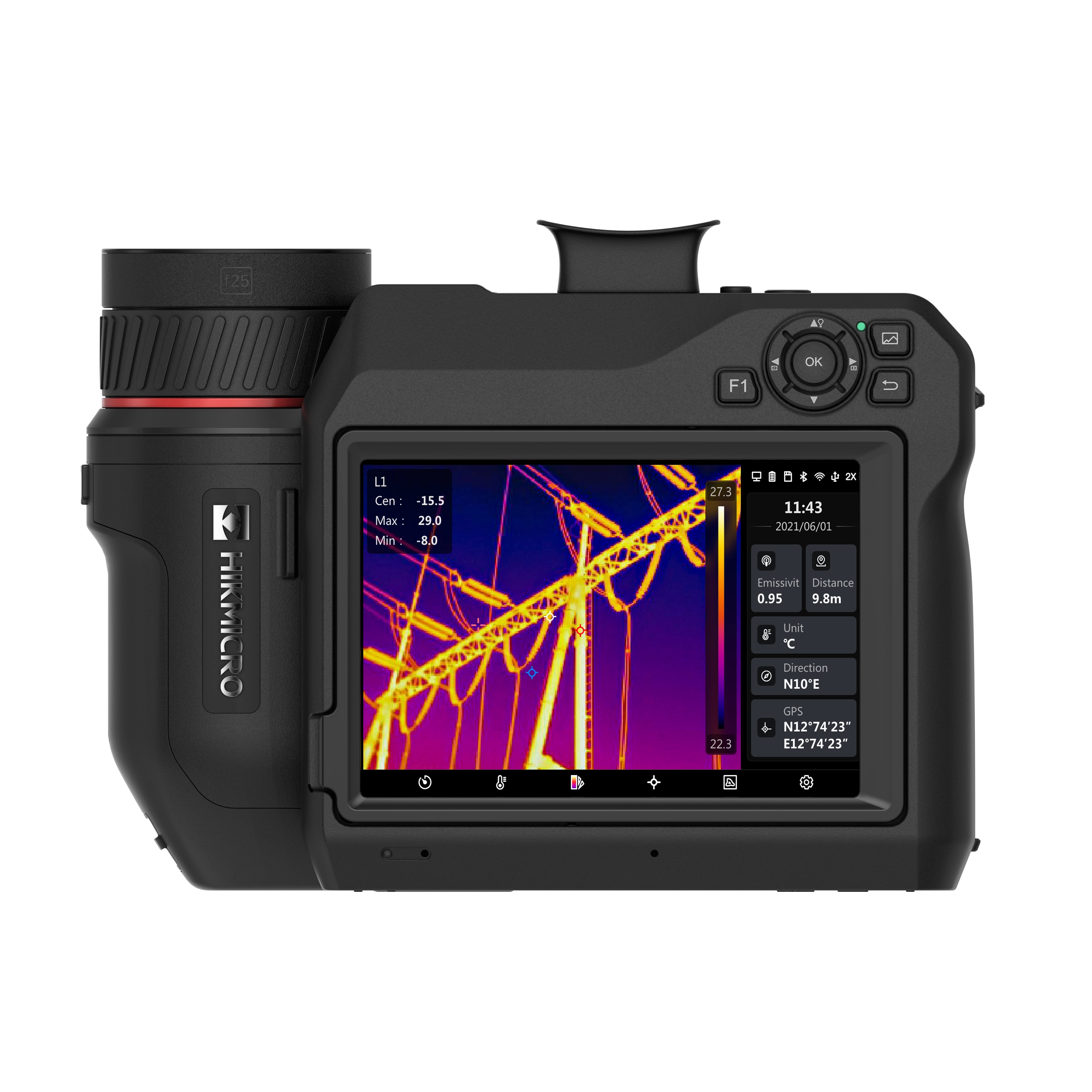

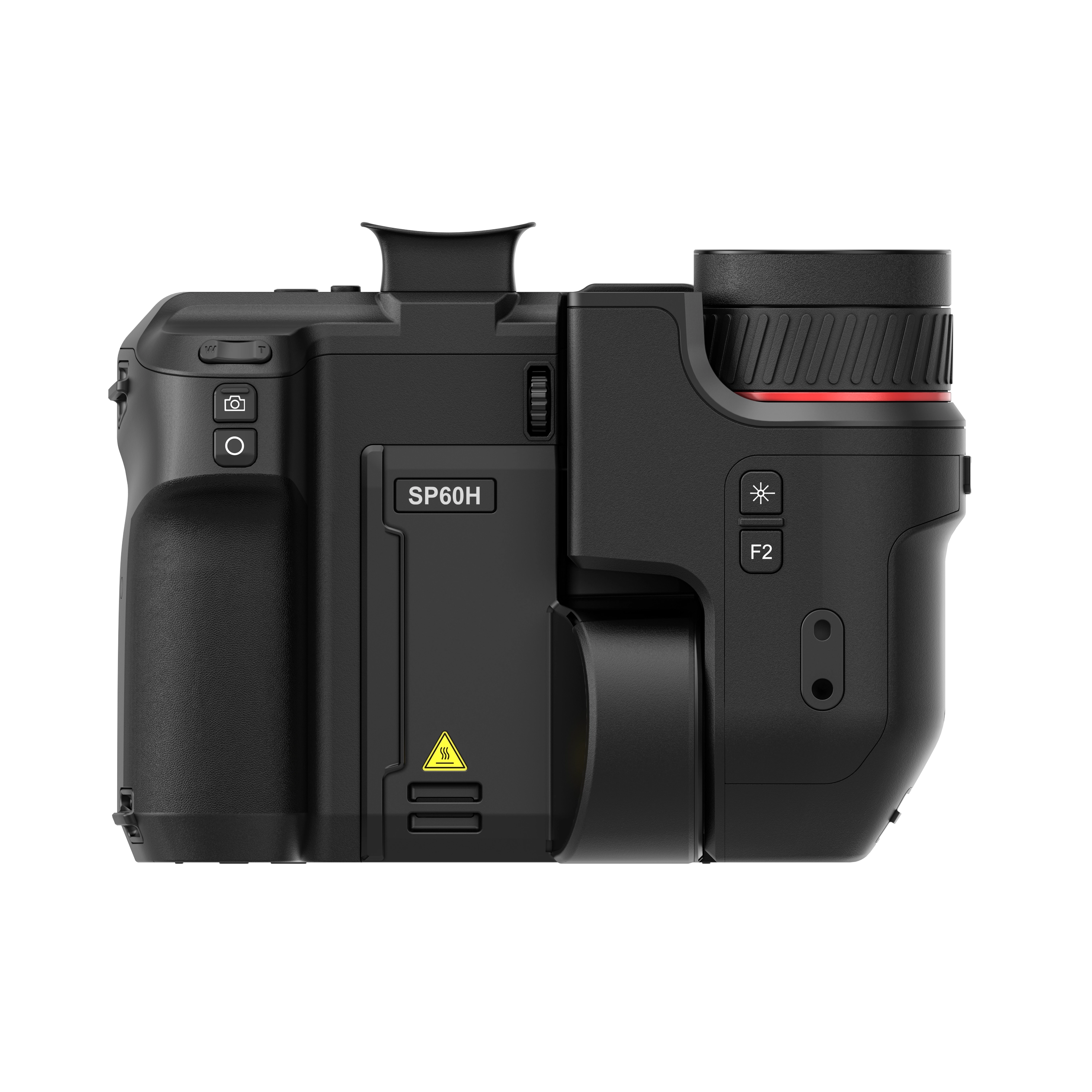

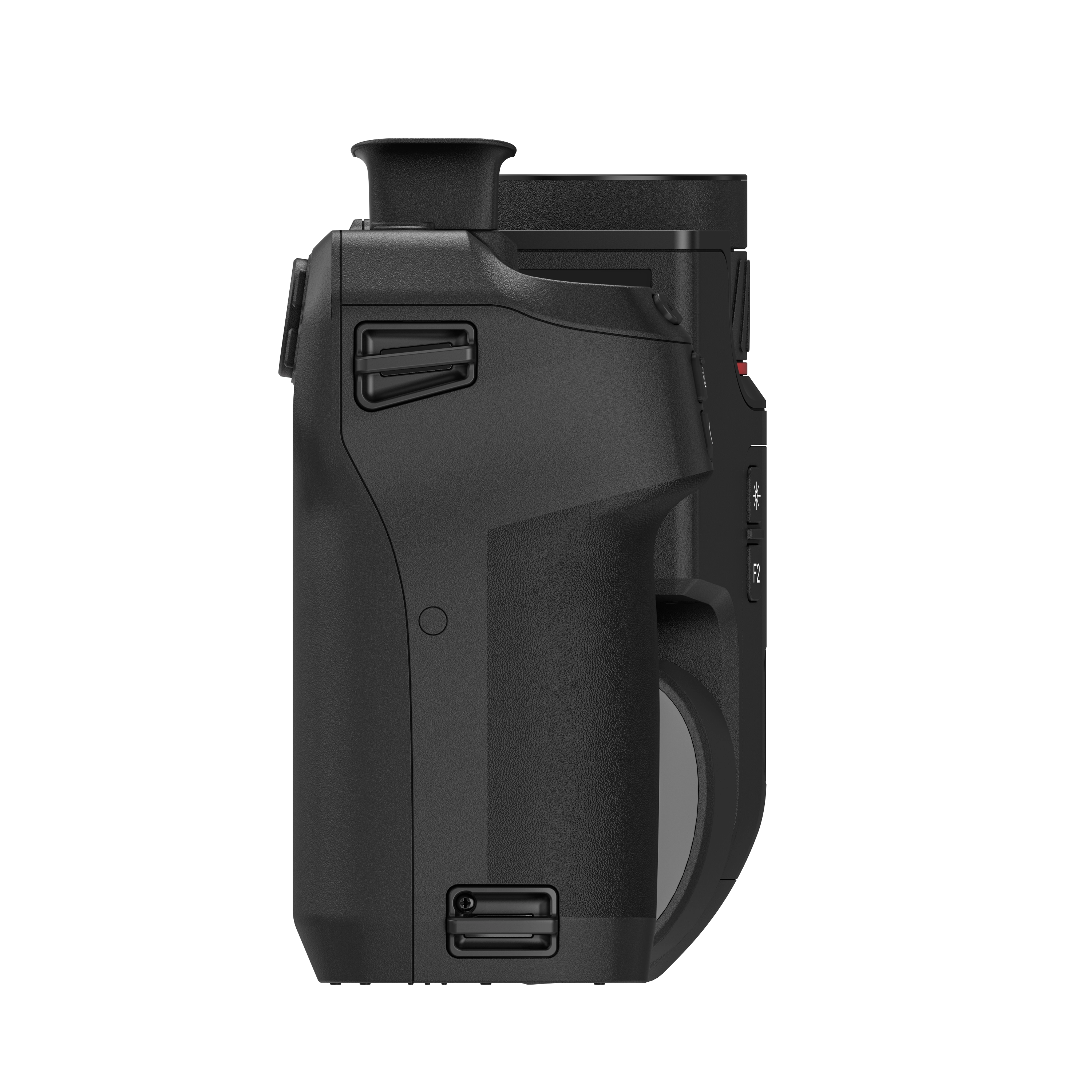

HIKMICRO SP60H photo 1
HIKMICRO SP60H photo 2

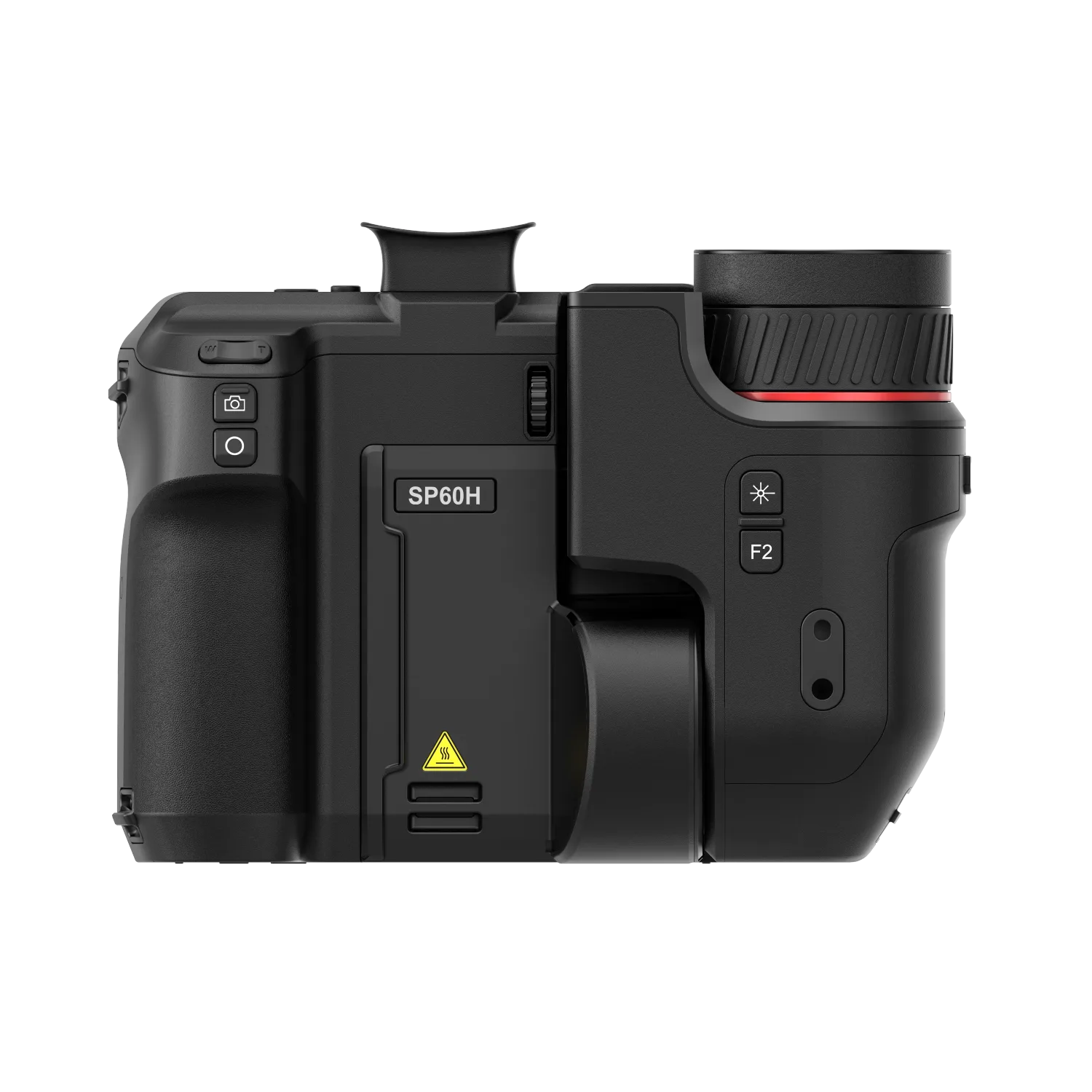

HIKMICRO SP60H photo 3
HIKMICRO SP60H photo 4
All Products
SP60H
SP Series

SP60H

The HIKMICRO SP60H is a high-temperature thermal camera with 640×480 resolution that measures up to 2200°C. It suits steel, cement, glass and power plants in Malaysia that need detailed images of very hot processes.

Use it on kilns, furnaces, boilers and molten-metal lines, with interchangeable lenses for close or distant targets. The 640×480 thermal sensor with under 30 mK sensitivity measures from -40°C to 2200°C. It has a 5-inch touchscreen, about 4 hours of battery life and an IP54 rating.

Why buy from INFRAMATRIX? Genuine HIKMICRO cameras from INFRAMATRIX, an authorised HIKMICRO distributor in Malaysia, with a local service centre for calibration and after-sales support. New to thermal imaging? Our thermal imaging training teaches your team to use it properly.

For standard temperature ranges, see the HIKMICRO SP60. For even more detail, see the HIKMICRO SP100H and HIKMICRO SP120H.

Key specifications

  • Temperature range: -40°C to 2200°C
  • Thermal resolution: 640 × 480
  • NETD: < 30 mK
  • Frame rate: 30 Hz
  • Field of view: L8: 8° × 6°; L12: 12° × 9°; L25: 24.8° × 18.7°; L50: 50° × 37.3°
  • Focus: Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF
  • Spectral range: 7.5–14 μm
  • Display: 5" LCD Touchscreen
  • Storage: Removable 64 GB SD Card (Up to 128 GB)
  • Battery life: Approx. 4 hours
  • Operating temperature: -20°C to 50°C
  • Protection rating: IP54
Request InfoView Brochure
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Details
Usage
Care

The FLIR Si2-Pro™ is an industrial-grade acoustic imaging camera designed to revolutionise maintenance and inspection workflows. Equipped with 124 MEMS microphones and AI-powered severity assessment, it excels in detecting partial discharges, pressurised air/gas leaks, and mechanical faults.

With built-in frequency tuning, precise leak quantification, and enterprise-level fleet management, this IP54-rated camera is an indispensable tool for industries focused on safety, efficiency, and cost savings.

The FLIR Si2-Pro™ is perfect for various industrial applications, including:

• Leak Detection: Identify and measure compressed air, gas, and other leaks from up to 200m away, minimizing energy losses and operational costs.

• Mechanical Fault Analysis: Detect bearing defects, misalignment, and other mechanical issues early to prevent equipment failures and reduce downtime.

• Partial Discharge Detection: Pinpoint electrical discharges in high-voltage systems, assess their severity, and classify PD types for targeted maintenance.

To maintain the FLIR Si2-Pro™ in peak condition:

• Regularly clean the camera’s sensors and microphones using appropriate tools to ensure precise measurements.

• Store the device in its provided hard transport case to protect it from dust, moisture, and physical damage.

• Update the camera firmware via OTA (Over-The-Air) updates to access the latest features and fixes.

• Schedule routine calibration and servicing to ensure long-term accuracy and performance.

Handheld Thermal Cameras
Handheld Thermal Cameras
Specifications
The technical specifications of the FLIR Si2-Pro™ are as follows.
IR Resolution
240 × 180 pixels (43,200 pixels)
Thermal Sensitivity/NETD
<0.06°C (0.11°F) / <50 mK at 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Field of view (FOV)
33° × 25°
Digital Camera
5 MP
Image Modes
Thermal MSX, Thermal, Picture-in-Picture, Digital camera
Display
3.5 inches
640 × 480 color LCD
Storage Media
Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
